MXC Multi-Axis Motion Controllers

  • > Electronics
  • > Motion Controllers
  • MXC Multi-Axis Motion Controllers
motion-controllers

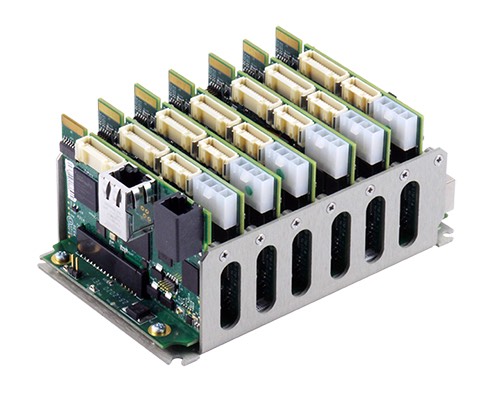

Allied Motion's MXC series is our advanced multi-axis motion controller platform with up to six advanced servo drives plus master controller, all in one compact modular mini rack unit.

The integrated servo drive modules are rated up to 15 A continuous output with a bus voltage from 12 up to 80 VDC to accommodate a broad range of motors. Use the MXC as your embedded, standalone or bus-connected machine controller for truly impressive performance in multi-axis applications.

The MXC's main features are summarized below.

Resources

What is a Servo Motor?

Series Type Power Supply Axes Output Voltage (VDC) Rated Ouput Current (DC equiv.) Rated Output Power (W) Bus Product Information
Series
MXC
Type
Multi-axis programmable motion controller with integrated servo drives
Power Supply
12 - 80 VDC
Axes
Up to 6
Output Voltage (VDC)
10 - 78
Rated Ouput Current (DC equiv.)
5, 14 (40 total per rack)
Rated Output Power (W)
340, 1000 (up to 2900 per rack)
Bus
Ethernet
Product Information
