Tubeaxial Blowers

Tubeaxial blowers

Tubeaxial Blowers (Mil-Aero)

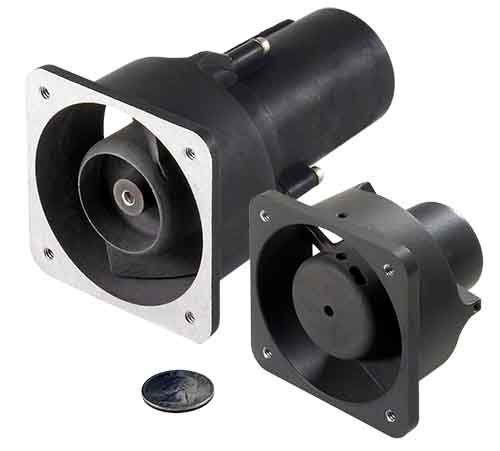

Allied Motion offers small-frame, compact Tubeaxial Blowers designed for mil-aero applications and come in both AC and DC powered units.

Free air flow for these tubeaxial blowers ranges from 20 up to 62 CFM. These blowers can provide air flow in either forward or reverse direction.

SeriesFrame Size mmLength mmFree Air Flow CFMFree Air Current AVoltageFrequency HzSpeed RPMInput Power WProduct Information
LL67 sq.99580.627 VDC-1100016
MM57 sq.90250.427 VDC-1100011
SS57 sq.51250.227 VDC-110005
MC57 sq., 67 sq.8620, 37, 62-115 VAC60, 4003600, 11000, 1180011, 20, 14
SC57 sq., 67 sq.5130, 45, 50-27, 115, 200 VAC4009800, 1500012, 30


Allied Motion's engineers will work with you to develop a custom solution to meet your specific requirements.  We're here to help you every step of the way.
