PerformeX Miniature Slotless Brushless DC Motor

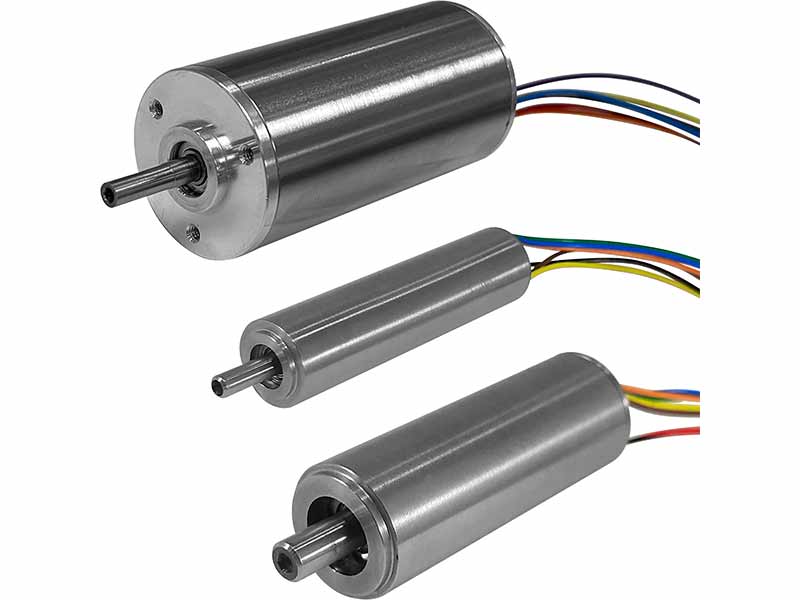

Allied Motion’s PerformeX series are miniature slotless design brushless DC motors.

The patented technology of our PerformeX series enables these miniature slotless BLDC motors to deliver up to double the performance of equivalently-sized motors.

The PerformeX series was designed specifically to power precision instruments such as surgical handpieces and similar medical and dental power tools; however, they are also an ideal choice for any application that requires a small yet powerful, high speed BLDC motor, such as small high-speed spindles, machine automation, or robotics.

PerformeX motor performance is summarized below.

SeriesFrame O.D. (nom) mmLength (nom) mmRated Torque mNmPower WVoltage VDCRated Speed RPMProduct Information
SL0512.724, 29.58.5, 10.513 - 4924, 48Up to 101,600
SL06516.516.5, 25.410.9, 18.735 - 7024, 48Up to 65,300
SL092224, 3023, 30.970 - 14024, 48Up to 25,200

NEED A CUSTOM SOLUTION?

Allied Motion's engineers will work with you to develop a custom solution to meet your specific requirements.  We're here to help you every step of the way.
