  • Globe Mil-Aero AC Motors
globe-mil-areo-ac-motors

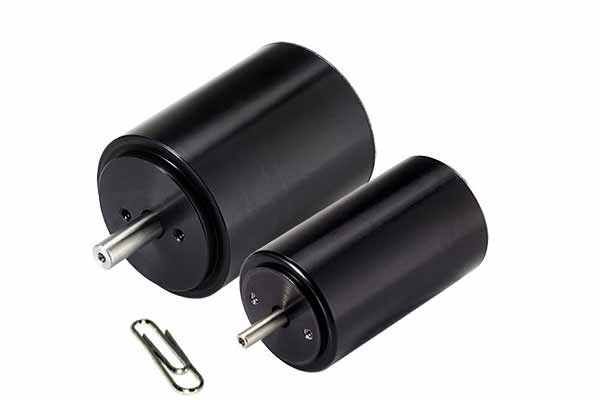

Allied Motion's Globe FC and MC line of small-frame AC motors are designed for mil-aero (mil-spec) applications.

Both hysteresis synchronous and induction versions are available with up to 65 W output power. Rated speed ranges from 600 up to 24,000 RPM.

FC and MC AC motors are designed for use on 400 Hz frequency in both single and three-phase power systems. These motors can also be combined with options such as integral planetary gear trains, clutches, and brakes.

Key features of the FC and MC series are provided in the table below. Click the series name to access a full specification datasheet.

Series Frame Size (mm) Length (mm) Voltage (VAC) Frequency (Hz) Rated Load Torque (mNm) Rated Output Speed (RPM) Rated Load Power (W) Product Information
Series
FC
Frame Size (mm)
43
Length (mm)
57
Voltage (VAC)
115, 200
Frequency (Hz)
60, 400
Rated Load Torque (mNm)
3.5 - 8.5
Rated Output Speed (RPM)
1200 - 24000
Rated Load Power (W)
12 - 45
Product Information
Series
FC
Frame Size (mm)
43
Length (mm)
57
Voltage (VAC)
115, 200
Frequency (Hz)
60, 400
Rated Load Torque (mNm)
7.1 - 17.7
Rated Output Speed (RPM)
600 - 22500
Rated Load Power (W)
12 - 65
Product Information
Series
MC
Frame Size (mm)
32
Length (mm)
57
Voltage (VAC)
115, 200
Frequency (Hz)
60, 400
Rated Load Torque (mNm)
3.2 - 6
Rated Output Speed (RPM)
1200 - 24000
Rated Load Power (W)
12 - 33
Product Information
Series
MC
Frame Size (mm)
32
Length (mm)
57
Voltage (VAC)
115, 200
Frequency (Hz)
400
Rated Load Torque (mNm)
7.1, 10.6
Rated Output Speed (RPM)
10000 - 220000
Rated Load Power (W)
23, 32, 40
Product Information
