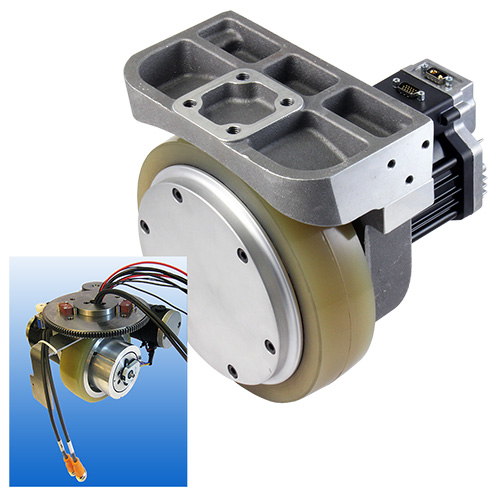

Allied Motion's WheelMax™ series are fully integrated powered wheel drives. WheelMax wheels are engineered for use as traction drive units for electrically powered vehicles. Each compact WheelMax combines a wheel with tire, an epicyclic gearbox, and a brushless DC motor with integrated drive electronics, all in a compact, ready-to-mount unitized assembly.

WheelMax model capabilities are summarized in the table below

Allied Motion can custom-design a WheelMax tailored to your specific requirements. Contact us to discuss your application.

Series Rated Load
(kg)		 Tire Diameter
(mm)		 Rated Wheel Speed
(RPM)		 Gear Ratio
(n:1)		 Motor Voltage
(VDC)		 Rated Output Torque
(Nm)		 Rated Current
(A)		 Rated Output Power
(W)		 Product Information
Series
GWM-5097 w/ Steering
Rated Load
(kg)
227
Tire Diameter
(mm)
152
Rated Wheel Speed
(RPM)
102
Gear Ratio
(n:1)
22
Motor Voltage
(VDC)
24
Rated Output Torque
(Nm)
14
Rated Current
(A)
18
Rated Output Power
(W)
250
Product Information
Datasheet
Additional Files
Series
GWM-5257
Rated Load
(kg)
227
Tire Diameter
(mm)
152
Rated Wheel Speed
(RPM)
160
Gear Ratio
(n:1)
20
Motor Voltage
(VDC)
24, 48
Rated Output Torque
(Nm)
9
Rated Current
(A)
12, 8
Rated Output Power
(W)
246
Product Information
Datasheet
Additional Files
Series
GWM-5267
Rated Load
(kg)
454
Tire Diameter
(mm)
203
Rated Wheel Speed
(RPM)
102
Gear Ratio
(n:1)
30
Motor Voltage
(VDC)
24, 48
Rated Output Torque
(Nm)
21
Rated Current
(A)
17, 11
Rated Output Power
(W)
350
Product Information
Datasheet
Additional Files
