Electric Steering Motor

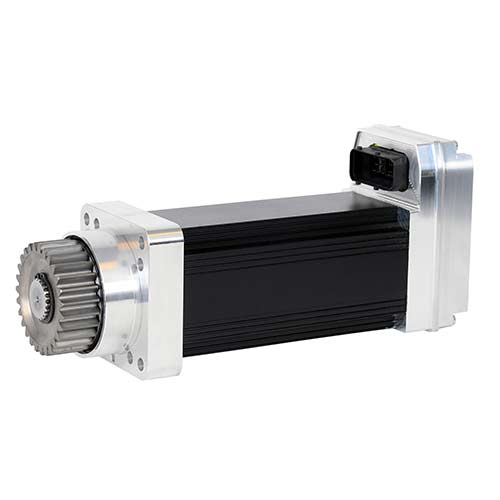

Allied Motion's EPS series are compact, fully-integrated brushless electric steering actuators intended for application in warehouse trucks (lift trucks, reach trucks, etc.), AGVs/AGCs, and similar vehicles. The EPS actuator is a complete steering subsystem comprised of brushless motor, gearing, programmable electronic motor controller, and CAN communication.
The EPS series is available in three frame sizes and 16 models to cover virtually any electric steering requirement of the intended applications. The table below summarizes the performance range of the EPS series.
Resources
Allied Corporate Overview
Electric Steering & Traction Solutions
| Series | Voltage (VDC) |
Output Speed (RPM, at S2 60 min) |
Torque (Nm at S2 60 min) |
Output Speed (RPM, at Tpk, 5s) |
Peak Torque (Nm at 5s) |
Product Information |
|---|---|---|---|---|---|---|
|
Series
EPS070
|
Voltage
(VDC)
24
|
Output Speed
(RPM, at S2 60 min)
110
|
Torque
(Nm at S2 60 min)
10, 20
|
Output Speed
(RPM, at Tpk, 5s)
70
|
Peak Torque
(Nm at 5s)
45, 75
|
Product Information
|
|
Series
EPS090
|
Voltage
(VDC)
24, 36, 48
|
Output Speed
(RPM, at S2 60 min)
85 - 110
|
Torque
(Nm at S2 60 min)
30 -70
|
Output Speed
(RPM, at Tpk, 5s)
52 -80
|
Peak Torque
(Nm at 5s)
120 - 250
|
Product Information
|
|
Series
EPS110
|
Voltage
(VDC)
24, 36, 48
|
Output Speed
(RPM, at S2 60 min)
65 - 90
|
Torque
(Nm at S2 60 min)
70- 120
|
Output Speed
(RPM, at Tpk, 5s)
43 - 60
|
Peak Torque
(Nm at 5s)
250 - 500
|
Product Information
|
