H Series Brushless Servo Motor Drives

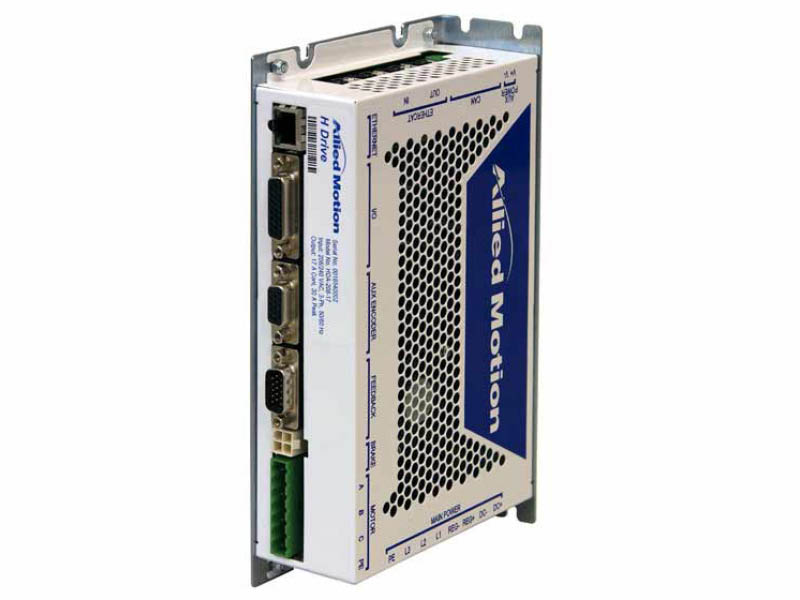

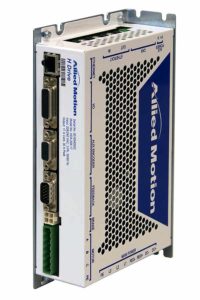

Allied Motion’s H-Drive is an advanced brushless servo motor drive designed to be the perfect mate to our HeiMotion brushless servo motors and to our Megaflux series of brushless torque motors. Featuring Hiperface DSL and multi-feedback device support, the H-Drive is rated up to 4800 W continuous output power.

Our H-Drive brushless servo motor drives features a digital, DSP-based design and is capable of controlling torque, velocity or position to ensure outstanding servo motion performance for robot, medical, industrial and automation applications. Command communication options include EtherCAT, Ethernet, CAN and CANopen, and ±10 V analog.

Performance capabilities for the H-Drive are summarized below.

SeriesTypePower Supply
VAC
Output Voltage
VDC
Continuous CurrentPeak Output
Current (4 sec)
Continuous
Output Power
Rated Output
Power W
Product Information
H-DriveAC Brushless
Servo Motor Drive
110 - 240Up to 39010 Arms (14 Adc)21 Arms (30 Adc) Up to 4kw, 1200 W,
2400 W
Up to 4000Downloads

NEED A CUSTOM SOLUTION?

Allied Motion's engineers will work with you to develop a custom solution to meet your specific requirements.  We're here to help you every step of the way.
