Megaflux™ & CM Housed Direct Drive Torque Motors

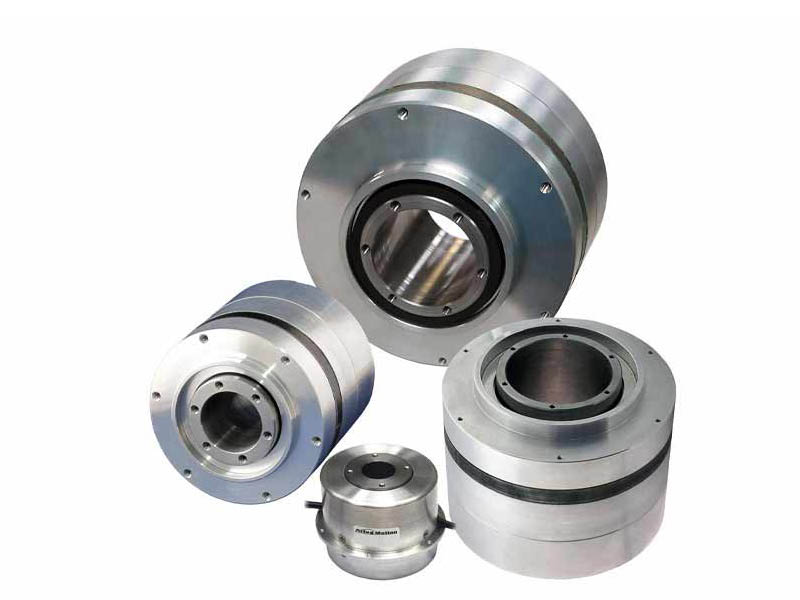

Allied Motion offers housed direct drive brushless torque motors ready to mount into your application. These high performance torque motors are available in four series with outer diameters up to 170 mm (6.7 in).

The CM series are available with eight different optical encoder versions, including absolute formats. Our housed Megaflux series are fully integrated units that include a servo drive and an optical encoder.

Summary technical details for Allied’s housed direct drive torque motors are provided in the table below.

Allied Motion engineers can custom-design a version to meet your specific application requirements.

Resources

Allied Corporate Overview
What is a Torque Motor?
What is a Frameless Motor?

QuickShip Products

Some of the models for this product series are stocked and available for immediate shipment! Look for the QuickShip symbol in the datasheet next to available QuickShip part numbers. Click the part number link to go directly to our online store.

Series Integrated Servo Drive Integrated Encoder Frame Size (OD)
(mm)
Frame Size (ID)
(mm)
Length
(mm)
Voltage
(Vdc)
Rated Torque
(Nm)
Rated Speed
(rpm)
Rated Output Power
(W)
Product Information
Series
CM-2600
Integrated Servo Drive
No
Integrated Encoder
Incremental or *Absolute
Frame Size (OD)
(mm)
66.3
Frame Size (ID)
(mm)
12.7*, 19.0
Length
(mm)
55
Voltage
(Vdc)
24
Rated Torque
(Nm)
0.2
Rated Speed
(rpm)
1125
Rated Output Power
(W)
22.3
Product Information
Series
Megaflux 170i
Integrated Servo Drive
Yes
Integrated Encoder
3600 lpr, programmable resolution
Frame Size (OD)
(mm)
170
Frame Size (ID)
(mm)
64
Length
(mm)
97, 113, 138
Voltage
(Vdc)
48
Rated Torque
(Nm)
2.2, 4.8, 8.5
Rated Speed
(rpm)
1000, 1000, 750
Rated Output Power
(W)
227, 502, 670
