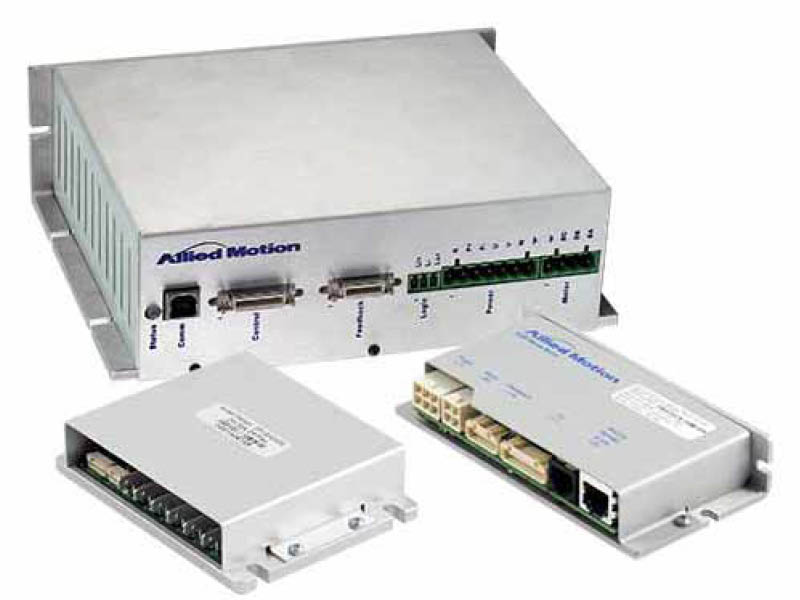

Allied Motion offers several brushless motor drives to power our motors.

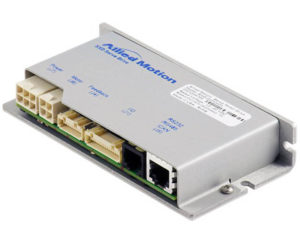

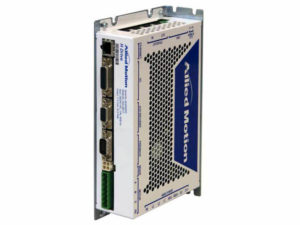

The cost-effective single-axis SXD brushless motor drive is respectively, DC-fed and AC-fed full-featured servo drives. Both are compact, modular units able to precisely control motor torque or velocity. The SXD is rated up to 1000 W continuous and the xDrive can provide up to 4.4 kW continuous.

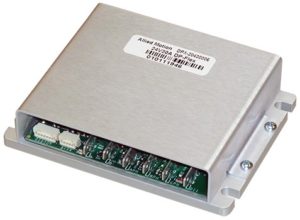

Our patented DPFlex™ II brushless motor drive is the best choice for robust speed control of sensorless motors. The DPFlex II reliably starts sensoreless motors under load, and can drive suitable models to speeds as high as 150,000 RPM.
Performance capabilities for our brushless motor drives are summarized below.
| Series | Type | Power Supply | Output Voltage (VDC) | Rated Output Current (DC equiv.) | Rated Output Power (W) | Product Information |
|---|---|---|---|---|---|---|
|
Series
DPFlex
|
Type
Sensorless brushless drive
|
Power Supply
12, 24, 48 VDC
|
Output Voltage (VDC)
9-55
|
Rated Output Current (DC equiv.)
5, 15, 30
|
Rated Output Power (W)
50 - 600
|
Product Information
|
|
Series
H-Drive
|
Type
DSP-based Brushless Servo Drive
|
Power Supply
110 – 240 VAC
|
Output Voltage (VDC)
Up to 390
|
Rated Output Current (DC equiv.)
12 continuous Arms, 21 peak Arms
|
Rated Output Power (W)
Up to 4800
|
Product Information
|
|
Series
SXD
|
Type
Brushless servo drive
|
Power Supply
12 - 80 VDC
|
Output Voltage (VDC)
160 - 320
|
Rated Output Current (DC equiv.)
15
|
Rated Output Power (W)
1000
|
Product Information
|
