KinetiMax™ High Power Density Brushless Motors

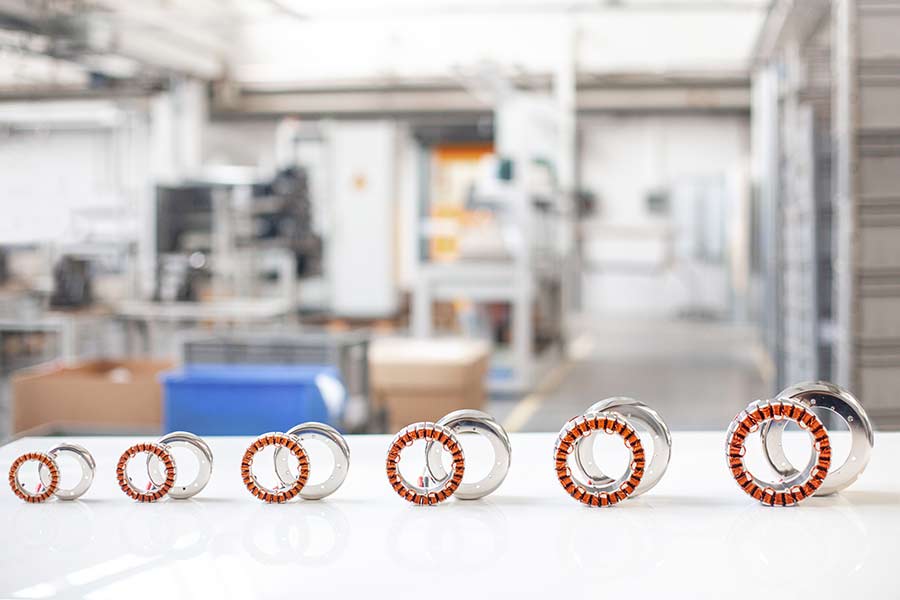

Allied Motion’s KinetiMax™ HPD series are outer-rotor design brushless motors featuring frameless part sets.
Available in six frame sizes with three stack-lengths per size and three windings per stack length, allowing you to select an optimum configuration with an exact performance fit for your application.
The HPD outer-rotor brushless motor series is designed for high-torque, low-cogging applications like robotics, AGVs, and handheld power tools.
KinetiMax HPD series motor performance is summarized below.
Resources
Allied Corporate Overview
What is a Torque Motor?
What is a Frameless Motor?
| Series | Frame Size (mm) | Length (mm) | Motor Voltage (Vdc) | Rated Torque (Nm) | Rated Speed (rpm) | Rated Current (A) | Output Power (W) | Product Information |
|---|---|---|---|---|---|---|---|---|
|
Series
KM 062
|
Frame Size (mm)
62
|
Length (mm)
21
|
Motor Voltage (Vdc)
17
|
Rated Torque (Nm)
0.24
|
Rated Speed (rpm)
4320
|
Rated Current (A)
7
|
Output Power (W)
108
|
Product Information
|
|
Series
KM 062
|
Frame Size (mm)
62
|
Length (mm)
27
|
Motor Voltage (Vdc)
14
|
Rated Torque (Nm)
0.42
|
Rated Speed (rpm)
2948
|
Rated Current (A)
11
|
Output Power (W)
131
|
Product Information
|
|
Series
KM 062
|
Frame Size (mm)
62
|
Length (mm)
33
|
Motor Voltage (Vdc)
18
|
Rated Torque (Nm)
0.55
|
Rated Speed (rpm)
2617
|
Rated Current (A)
9.3
|
Output Power (W)
150
|
Product Information
|
|
Series
KM 072
|
Frame Size (mm)
72
|
Length (mm)
23
|
Motor Voltage (Vdc)
21
|
Rated Torque (Nm)
0.43
|
Rated Speed (rpm)
3712
|
Rated Current (A)
9
|
Output Power (W)
166
|
Product Information
|
|
Series
KM 072
|
Frame Size (mm)
72
|
Length (mm)
31
|
Motor Voltage (Vdc)
16
|
Rated Torque (Nm)
0.76
|
Rated Speed (rpm)
2545
|
Rated Current (A)
14
|
Output Power (W)
202
|
Product Information
|
|
Series
KM 072
|
Frame Size (mm)
72
|
Length (mm)
38
|
Motor Voltage (Vdc)
22
|
Rated Torque (Nm)
0.98
|
Rated Speed (rpm)
2264
|
Rated Current (A)
12
|
Output Power (W)
232
|
Product Information
|
|
Series
KM 083
|
Frame Size (mm)
83
|
Length (mm)
28
|
Motor Voltage (Vdc)
14
|
Rated Torque (Nm)
0.7
|
Rated Speed (rpm)
3327
|
Rated Current (A)
19.4
|
Output Power (W)
245
|
Product Information
|
|
Series
KM 083
|
Frame Size (mm)
83
|
Length (mm)
36
|
Motor Voltage (Vdc)
19
|
Rated Torque (Nm)
1.25
|
Rated Speed (rpm)
2294
|
Rated Current (A)
17.1
|
Output Power (W)
299
|
Product Information
|
|
Series
KM 083
|
Frame Size (mm)
83
|
Length (mm)
44
|
Motor Voltage (Vdc)
15
|
Rated Torque (Nm)
1.6
|
Rated Speed (rpm)
2046
|
Rated Current (A)
25.5
|
Output Power (W)
345
|
Product Information
|
|
Series
KM 095
|
Frame Size (mm)
95
|
Length (mm)
32
|
Motor Voltage (Vdc)
17
|
Rated Torque (Nm)
1.3
|
Rated Speed (rpm)
3038
|
Rated Current (A)
24
|
Output Power (W)
360
|
Product Information
|
|
Series
KM 095
|
Frame Size (mm)
95
|
Length (mm)
40
|
Motor Voltage (Vdc)
14
|
Rated Torque (Nm)
2.0
|
Rated Speed (rpm)
2109
|
Rated Current (A)
36
|
Output Power (W)
442
|
Product Information
|
|
Series
KM 095
|
Frame Size (mm)
95
|
Length (mm)
49
|
Motor Voltage (Vdc)
18
|
Rated Torque (Nm)
2.58
|
Rated Speed (rpm)
1886
|
Rated Current (A)
34
|
Output Power (W)
510
|
Product Information
|
|
Series
KM 109
|
Frame Size (mm)
109
|
Length (mm)
38
|
Motor Voltage (Vdc)
12
|
Rated Torque (Nm)
1.83
|
Rated Speed (rpm)
2792
|
Rated Current (A)
51
|
Output Power (W)
534
|
Product Information
|
|
Series
KM 109
|
Frame Size (mm)
109
|
Length (mm)
48
|
Motor Voltage (Vdc)
16
|
Rated Torque (Nm)
3.24
|
Rated Speed (rpm)
1954
|
Rated Current (A)
45
|
Output Power (W)
662
|
Product Information
|
|
Series
KM 109
|
Frame Size (mm)
109
|
Length (mm)
59
|
Motor Voltage (Vdc)
22
|
Rated Torque (Nm)
4.17
|
Rated Speed (rpm)
1754
|
Rated Current (A)
38
|
Output Power (W)
767
|
Product Information
|
|
Series
KM 125
|
Frame Size (mm)
125
|
Length (mm)
42
|
Motor Voltage (Vdc)
15
|
Rated Torque (Nm)
2.95
|
Rated Speed (rpm)
2598
|
Rated Current (A)
62
|
Output Power (W)
803
|
Product Information
|
|
Series
KM 125
|
Frame Size (mm)
125
|
Length (mm)
54
|
Motor Voltage (Vdc)
20
|
Rated Torque (Nm)
5.2
|
Rated Speed (rpm)
1838
|
Rated Current (A)
55
|
Output Power (W)
1006
|
Product Information
|
|
Series
KM 125
|
Frame Size (mm)
125
|
Length (mm)
66
|
Motor Voltage (Vdc)
27
|
Rated Torque (Nm)
6.7
|
Rated Speed (rpm)
1658
|
Rated Current (A)
47
|
Output Power (W)
1171
|
Product Information
|
