Commercial & Industrial Brushed DC Motors

Commercial & Industrial Brushed DC Motors

Commercial & Industrial Brushed DC Motors

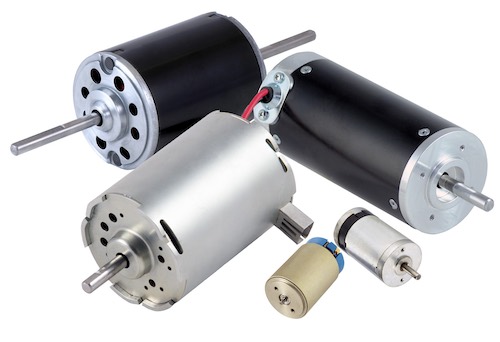

Allied offers 2-pole and 4-pole permanent-magnet brush Commercial & Industrial Brushed DC motors rated up to 0.5 HP output power. Models are available to meet the demands of a broad range of fractional horsepower commercial and industrial applications.

Our Endurance and Globe families of permanent magnet brush DC motors are available in a range of frame sizes and power levels to satisfy the demands of commercial and industrial applications needing continuous shaft power of up to 1/2 HP.

The Endurance family of commercial brushed DC motors is designed specifically for applications in medical mobility, mobile HVAC systems, and similar battery-powered fractional horsepower uses. They are available in four frame diameters between 2.0 and 4.0 inches (50.8 and 102 mm).

FamilyDiameterRated TorqueRated Power (W)Product Information
Globe Brushed DC Motors 1.188 - 2.125 inches2.47- 247 mNm (0.35 - 35 oz‑in)3.7 - 74.6 W continuous Details
Endurance Brushed DC Motors2.0 - 4.0 inches0.07 - 1.69 Nm (10 - 240 oz‑in)22 - 373 W continuous Details


Allied Motion's engineers will work with you to develop a custom solution to meet your specific requirements.  We're here to help you every step of the way.
