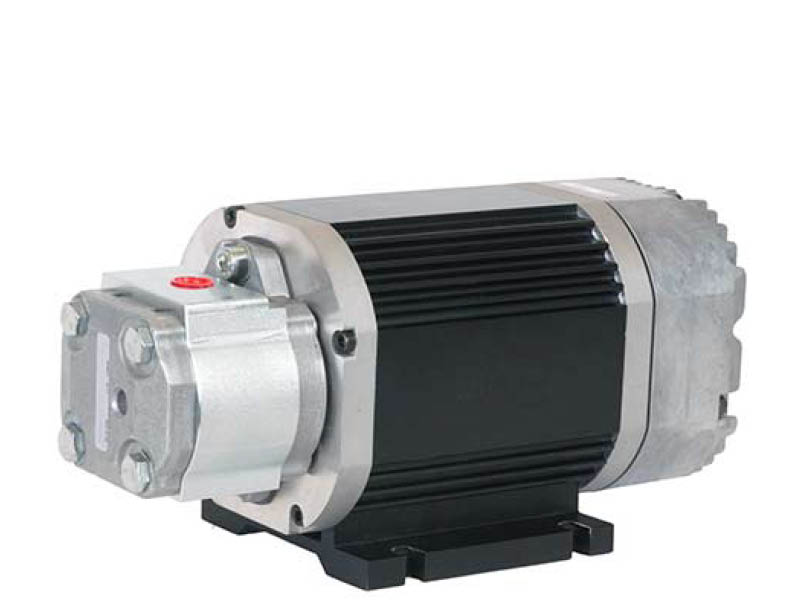

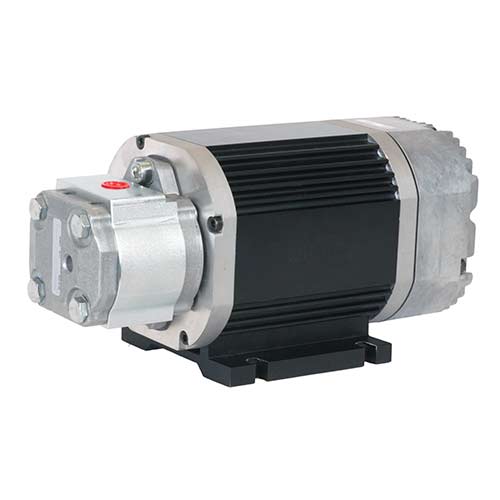

Electrohydraulic Pump Motor

Allied Motion's EHS series are compact, rugged brushless motors with integrated drive electronics designed specifically to directly drive electrohydraulic pumps on large trucks, commercial buses, construction equipment, larger warehouse trucks, and similar vehicle applications.

The EHS series motors are available in two frame sizes and seven models to cover the requirements of a wide range of electrohydraulic steering applications, as well as lifting/auxiliary functions on fork lift trucks. The table below summarizes the performance range of the EHS series.

Request Quote

Request Custom Solution

Series	Voltage VDC	Output Power kW (at S2 60 min.)	Torque Nm (at S2 60 min.)	Output Power kW (at Tpk, 30s)	Peak Torque Nm (at 5s)	Product Information
EHS110	24, 48	0.6, 1.0	2, 3	1.5, 2.5	8, 12	Datasheet
EHS150	24, 48	1.2, 1.75	5, 8	3.0, 5.3	15, 30	Datasheet
