Coreless Brushed DC Motors

Coreless Brushed DC Motors

Coreless Brushed DC Motors

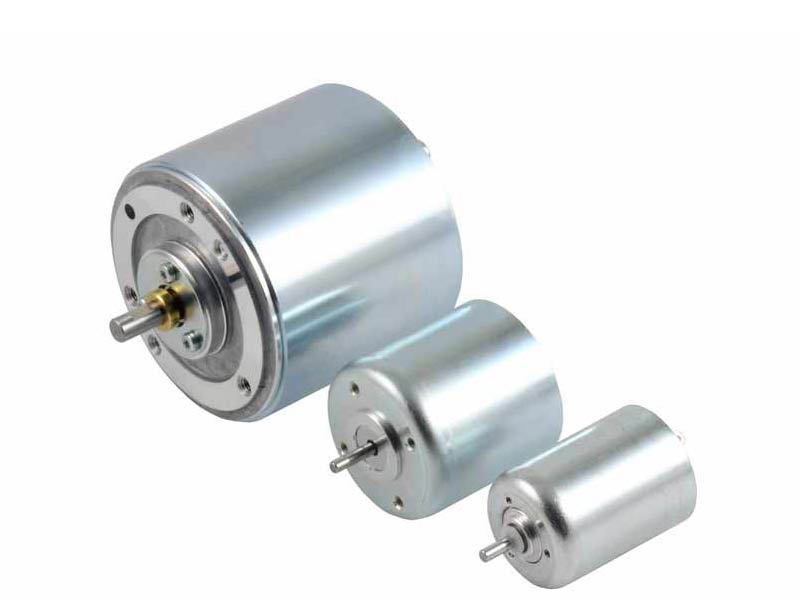

Allied Motion’s CL family of Coreless Brushed DC Motors maximizes performance via a unique coreless rotor design and high strength permanent magnets. Coreless DC motors boast virtually zero iron loss, no cogging torque, minimal torque ripple, and low rotor inertia.

Performance for the three frame-size series in the CL coreless DC motor family is summarized in the table below.

FamilyFrame Size mmRated Torque NmRated Power (W)Product Information
CL Coreless DC Motors29 - 6010 - 1002 - 25 Details


Allied Motion's engineers will work with you to develop a custom solution to meet your specific requirements.  We're here to help you every step of the way.
