Globe Brushed DC Motors

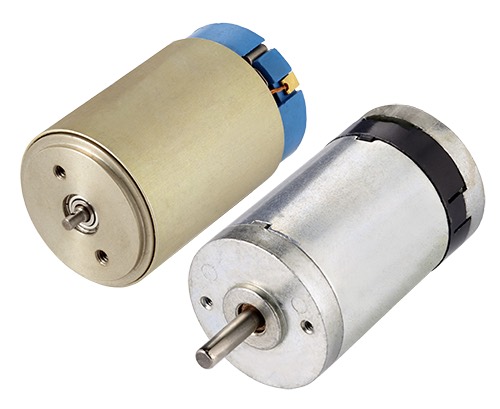

Allied Motion's Globe line of industrial brushed DC motors consists of five series of fractional HP motors with rated power up to 75 W and frame sizes from 30 through 54 mm (1.188 through 2.125 inches). Most series in this family are available with optional gearheads to boost torque output to as high as 8.83 Nm (1250 oz-in).
Performance ranges for series in the family are summarized below. Click the series name to access a complete specification datasheet.
Resources
Allied Corporate Overview
| Series | Frame Size (mm) | Length (mm) | Voltage (VDC) | Rated Load Torque (mNm) | Rated Output Speed (RPM) | Rated Current (A) | Rated Output Power (W) | Product Information |
|---|---|---|---|---|---|---|---|---|
|
Series
CLL
|
Frame Size (mm)
32
|
Length (mm)
53
|
Voltage (VDC)
6 -75
|
Rated Load Torque (mNm)
5.3 - 12.7
|
Rated Output Speed (RPM)
4500 - 16000
|
Rated Current (A)
0.1 - 2.0
|
Rated Output Power (W)
11.2
|
Product Information
|
|
Series
CMM
|
Frame Size (mm)
32
|
Length (mm)
44
|
Voltage (VDC)
6 -50
|
Rated Load Torque (mNm)
2.5 - 7
|
Rated Output Speed (RPM)
4600 - 22800
|
Rated Current (A)
0.12 - 2.0
|
Rated Output Power (W)
7.5
|
Product Information
|
|
Series
IM-13
|
Frame Size (mm)
30
|
Length (mm)
48, 56
|
Voltage (VDC)
12, 24
|
Rated Load Torque (mNm)
10, 18
|
Rated Output Speed (RPM)
5200
|
Rated Current (A)
0.4 - 1.3
|
Rated Output Power (W)
3.7, 6.7
|
Product Information
|
|
Series
IM-15
|
Frame Size (mm)
40
|
Length (mm)
60, 67, 84
|
Voltage (VDC)
12, 24
|
Rated Load Torque (mNm)
28, 35, 42
|
Rated Output Speed (RPM)
5200 - 6400
|
Rated Current (A)
1.0 - 3.1
|
Rated Output Power (W)
22
|
Product Information
|
|
Series
IM-21
|
Frame Size (mm)
54
|
Length (mm)
81-126
|
Voltage (VDC)
12-30.3
|
Rated Load Torque (mNm)
106-247
|
Rated Output Speed (RPM)
3100 - 4200
|
Rated Current (A)
2.4 - 8.8
|
Rated Output Power (W)
77
|
Product Information
|
