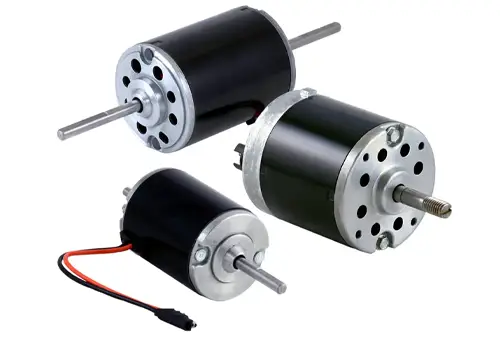

Endurance™ Brush PMDC Motors
Allied Motion's Endurance family of reliable brushed permanent-magnet DC motors are available in four frame sizes from 50 through 102 mm (2.0 through 4.0 inches) offering output power up to ½ HP. Capabilities for the Endurance motor series are summarized below.
Contact us for customization's to your Brush PMDC Motor such as alternate winding voltage or modified shaft/mounting version to suit your specific application needs.
| Series | Frame Size mm | Length mm | Motor Voltage VDC | Rated Torque Nm | Rated Output Speed RPM | Rated Current A | Rated Output Power W | Product Information |
|---|---|---|---|---|---|---|---|---|
| Endurance 20 | 50.8 | 97, 110, 122 | 12,24 | 0.1 - 0.2 | 3267 - 6200 | 4.3 - 8.8 | 56 - 87 | Downloads |
| Endurance 25 | 64 | 75-113 | 12 | 0.1 - 0.4 | 2600 - 3500 | 3.5 - 16 | 22 - 150 | Downloads |
| Endurance 30 | 76 | 76-152 | 12 | 0.1 - 1 | 1750 - 3000 | 5 - 25 | 44 - 200 | |
| Endurance 40 | 102 | 118-156 | 12 | 0.6 - 1.7 | 1300 - 4800 | 25, 30, 40 | 186 - 373 | Downloads |
