Mil-Aero Brushless & DC Planetary Gear Motors

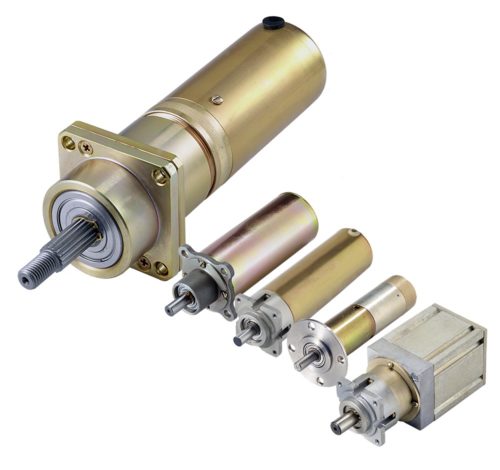

Allied Motion offers the Globe mil-aero-qualified line of fractional horsepower brushless DC and brush DC planetary gear motors.
Series are available equipped with either PMDC brush motors or brushless DC motors. Models with output torque rated to as high as 62 Nm (8800 oz-in) are available.
Performances for this family are summarized in the table below.
Resources
Allied Corporate Overview
| Series | Frame Size (mm) | Length (mm) | Voltage (VDC) | Rated Load Torque (Nm) | Rated Output Speed (RPM) | Gear Ratio (n:1) | Rated Current (A) | Rated Output Power (W) | Product Information |
|---|---|---|---|---|---|---|---|---|---|
|
Series
BD-1.875
|
Frame Size (mm)
38
|
Length (mm)
85 - 113
|
Voltage (VDC)
6 - 115
|
Rated Load Torque (Nm)
0.1-11
|
Rated Output Speed (RPM)
0.9 - 3412
|
Gear Ratio (n:1)
3.8 - 5211
|
Rated Current (A)
0.2 - 4.6
|
Rated Output Power (W)
2-22
|
Product Information
|
|
Series
BD-3
|
Frame Size (mm)
38
|
Length (mm)
137-141
|
Voltage (VDC)
6 - 115
|
Rated Load Torque (Nm)
2.8 - 62
|
Rated Output Speed (RPM)
0.9 - 42
|
Gear Ratio (n:1)
306 - 5211
|
Rated Current (A)
0.2 - 4.6
|
Rated Output Power (W)
2-19
|
Product Information
|
|
Series
BL-1.875
|
Frame Size (mm)
38
|
Length (mm)
94-123
|
Voltage (VDC)
6 - 115
|
Rated Load Torque (Nm)
0.1-11
|
Rated Output Speed (RPM)
0.6 - 2625
|
Gear Ratio (n:1)
3.8 - 5211
|
Rated Current (A)
0.1 - 6.5
|
Rated Output Power (W)
4-34
|
Product Information
|
|
Series
BL-3
|
Frame Size (mm)
38
|
Length (mm)
146-150
|
Voltage (VDC)
6 - 115
|
Rated Load Torque (Nm)
5.1 - 62
|
Rated Output Speed (RPM)
0.6 - 2625
|
Gear Ratio (n:1)
306 - 5211
|
Rated Current (A)
0.1 - 6.5
|
Rated Output Power (W)
4-30
|
Product Information
|
|
Series
CM
|
Frame Size (mm)
19
|
Length (mm)
35-42
|
Voltage (VDC)
6, 12, 24
|
Rated Load Torque (Nm)
0.1 - 2.2
|
Rated Output Speed (RPM)
0.6 - 2625
|
Gear Ratio (n:1)
18.8 - 780.6
|
Rated Current (A)
0.7, 0.4, 0.2
|
Rated Output Power (W)
0.8 - 1.4
|
Product Information
|
|
Series
LL
|
Frame Size (mm)
32
|
Length (mm)
71-105
|
Voltage (VDC)
6-75
|
Rated Load Torque (Nm)
0.1- 8.8
|
Rated Output Speed (RPM)
0.2 - 767
|
Gear Ratio (n:1)
18.8 - 21808
|
Rated Current (A)
0.1 - 2
|
Rated Output Power (W)
1.2 - 13
|
Product Information
|
|
Series
MM
|
Frame Size (mm)
32
|
Length (mm)
62-96
|
Voltage (VDC)
6-50
|
Rated Load Torque (Nm)
0.1- 8.8
|
Rated Output Speed (RPM)
0.2 - 1022
|
Gear Ratio (n:1)
18.8 - 21808
|
Rated Current (A)
0.1 - 2
|
Rated Output Power (W)
0.6 - 8
|
Product Information
|
|
Series
NB-15-1.25
|
Frame Size (mm)
38
|
Length (mm)
62-96
|
Voltage (VDC)
27
|
Rated Load Torque (Nm)
0.1- 8.8
|
Rated Output Speed (RPM)
0.4- 666
|
Gear Ratio (n:1)
18.8 - 21808
|
Rated Current (A)
3.4, 4.4
|
Rated Output Power (W)
10-61
|
Product Information
|
|
Series
NB-15-1.875
|
Frame Size (mm)
38
|
Length (mm)
78-127
|
Voltage (VDC)
27
|
Rated Load Torque (Nm)
0.1 - 11
|
Rated Output Speed (RPM)
1.7 - 3281
|
Gear Ratio (n:1)
3.8 - 5211
|
Rated Current (A)
3
|
Rated Output Power (W)
43-64
|
Product Information
|
|
Series
NB-15-3
|
Frame Size (mm)
38
|
Length (mm)
129-133
|
Voltage (VDC)
27
|
Rated Load Torque (Nm)
8.7 - 62
|
Rated Output Speed (RPM)
1.7 - 41
|
Gear Ratio (n:1)
306 - 5211
|
Rated Current (A)
3
|
Rated Output Power (W)
47-57
|
Product Information
|
|
Series
SD
|
Frame Size (mm)
19
|
Length (mm)
62-84
|
Voltage (VDC)
6-50
|
Rated Load Torque (Nm)
0.1 - 2.1
|
Rated Output Speed (RPM)
0.2 - 3796
|
Gear Ratio (n:1)
3.8 - 36873
|
Rated Current (A)
0.1 - 1.0
|
Rated Output Power (W)
0.3 - 3.7
|
Product Information
|
|
Series
SS
|
Frame Size (mm)
22
|
Length (mm)
58-88
|
Voltage (VDC)
6-50
|
Rated Load Torque (Nm)
0.1 - 2.1
|
Rated Output Speed (RPM)
0.2 - 4450
|
Gear Ratio (n:1)
3.8 - 36873
|
Rated Current (A)
0.1 - 1.0
|
Rated Output Power (W)
0.3 - 5.1
|
