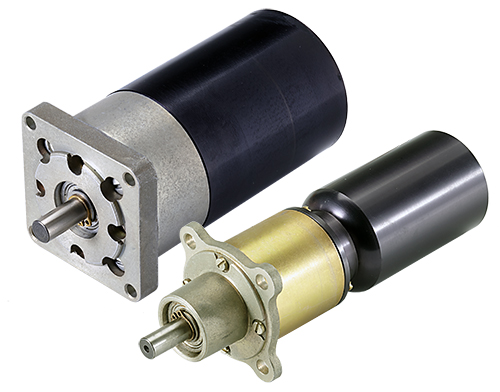

Mil-Aero AC Planetary Gear Motors
Allied Motion offers the Globe mil-aero-qualified line of fractional horsepower AC planetary gear motors.
Series with either a hysteresis or induction type motor are available. Models with output torque rated to as high as 8.8 Nm (1250 oz-in) are available.
Performances for this family are summarized in the table below.
Resources
Allied Corporate Overview
| Series | Motor Type | Frame Size (mm) | Length (mm) | Voltage (VAC) | Frequency (Hz) | Rated Load Torque (Nm) | Rated Output Speed (RPM) | Gear Ratio (n:1) | Product Informatio |
|---|---|---|---|---|---|---|---|---|---|
|
Series
FC
|
Motor Type
Hysteresis
|
Frame Size (mm)
43
|
Length (mm)
81 - 104
|
Voltage (VAC)
115, 200
|
Frequency (Hz)
60, 400
|
Rated Load Torque (Nm)
0.001 - 6.4
|
Rated Output Speed (RPM)
0.2 - 6000
|
Gear Ratio (n:1)
4 - 46656
|
Product Informatio
|
|
Series
FC
|
Motor Type
Induction
|
Frame Size (mm)
43
|
Length (mm)
81 - 104
|
Voltage (VAC)
115, 200
|
Frequency (Hz)
60, 400
|
Rated Load Torque (Nm)
0.002 - 8.8
|
Rated Output Speed (RPM)
0.2 - 5625
|
Gear Ratio (n:1)
4 - 46656
|
Product Informatio
|
|
Series
MC
|
Motor Type
Hysteresis
|
Frame Size (mm)
32
|
Length (mm)
73 - 106
|
Voltage (VAC)
115, 200
|
Frequency (Hz)
60, 400
|
Rated Load Torque (Nm)
0.00007 - 0.5
|
Rated Output Speed (RPM)
0.2 - 6000
|
Gear Ratio (n:1)
4 - 46656
|
Product Informatio
|
|
Series
MC
|
Motor Type
Induction
|
Frame Size (mm)
32
|
Length (mm)
73 - 106
|
Voltage (VAC)
115, 200
|
Frequency (Hz)
60, 400
|
Rated Load Torque (Nm)
0.001 - 8.8
|
Rated Output Speed (RPM)
0.2 - 5625
|
Gear Ratio (n:1)
4 - 46656
|
Product Informatio
|
