Allied Motion offers the Globe line of small-frame fractional horsepower planetary gear motors.

Series are available equipped with PMDC brush motors or brushless DC motors. Brushless DC planetary gear motors are featured here. Models with output torque rated to as high as 8.8 Nm (1250 oz-in) are available. (Brush DC planetary gear motors information is available here.)

Performance summaries for the brush DC planetary gear motors are summarized in the table below. Click the table links for complete specification information.

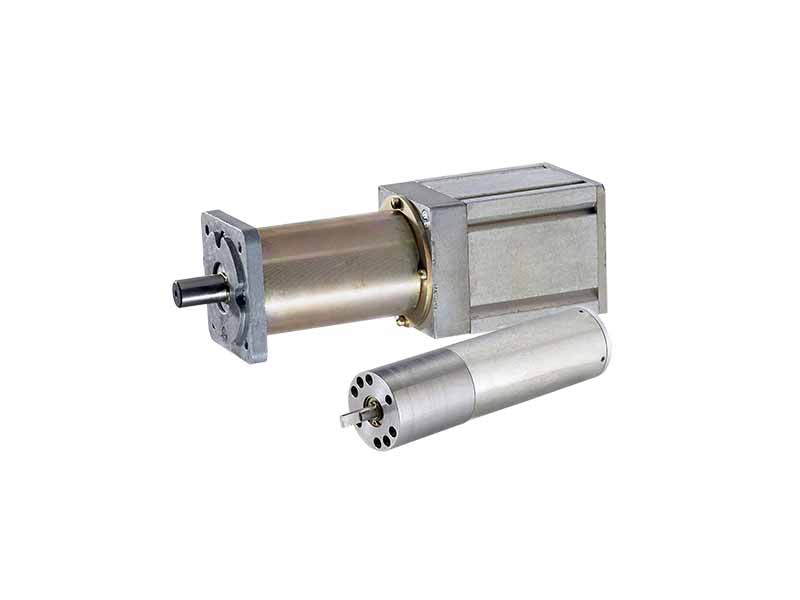

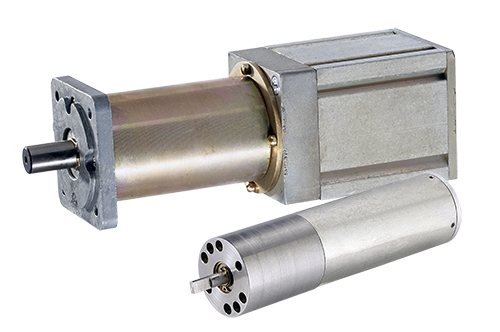

Allied Motion INB08 and INB15 brushless planetary gear motors

Series Frame Size (mm) Length (mm) Voltage (VDC) Rated Load Torque (Nm) Rated Output Speed (RPM) Gear Ratio (n:1) Rated Current (A) Rated Output Power (W) Rated Output Power (W)
Series
INB-08
Frame Size (mm)
20
Length (mm)
76-99
Voltage (VDC)
24
Rated Load Torque (Nm)
0.1-2.1
Rated Output Speed (RPM)
0.2 - 2625
Gear Ratio (n:1)
4 - 36873
Rated Current (A)
1.5
Rated Output Power (W)
7-22
Rated Output Power (W)
Series
INB-15
Frame Size (mm)
32
Length (mm)
92-115
Voltage (VDC)
27
Rated Load Torque (Nm)
0.3-8.8
Rated Output Speed (RPM)
0.2 - 2625
Gear Ratio (n:1)
4 - 46656
Rated Current (A)
3-4
Rated Output Power (W)
16-66
Rated Output Power (W)
