Quantum™ NEMA Brushless Servo Motors

Quantum™ NEMA Brushless Servo Motor

Quantum™ NEMA Brushless Servo Motors

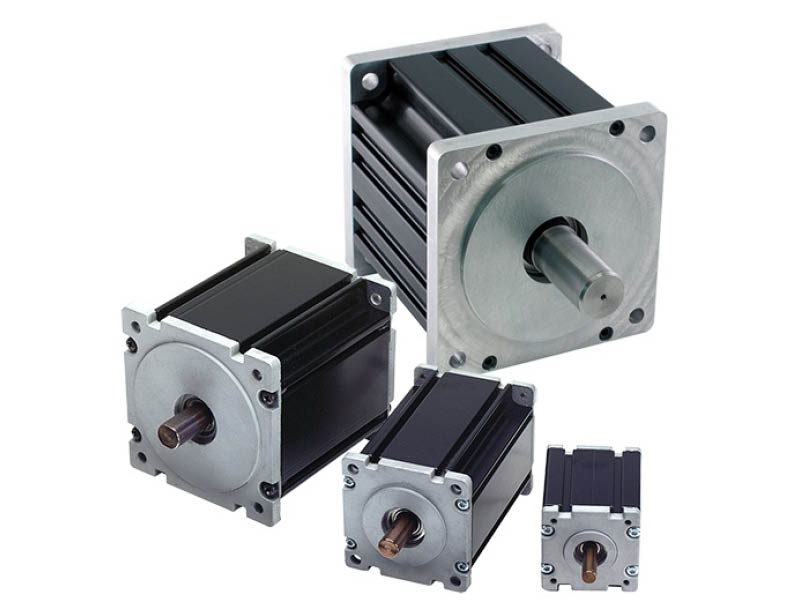

Allied Motion offers our housed Quantum high torque density brushless servo motors in four standard NEMA frame sizes (17, 23, 34 and 56) with rated torques ranging from 0.05 up to 11.1 Nm (7 up to 1573 oz-in).

Performance ranges of our standard housed Quantum servo motor series are summarized in the table below.

SeriesFrame Size (NEMA)Rotor Length mmMotor Voltage VDCRated Load Torque NmRated Speed RPMRated Current ARated Output Power WProduct Information
QB0171754 - 9224, 40, 1300.1 - 0.233850 - 13800 1.4 - 8.5 68 - 213Downloads
QB0235671 - 12824, 40, 1300.2 - 1.3 1700 - 79002.3 - 15154 - 460Downloads
QB0343476 - 13424, 40, 1300.6 - 3.1878 - 6600 4.4 - 20148 - 897Downloads
QB05656123 - 19940, 130, 3002.8 - 11.11911 - 43606.8 - 86957 - 2551Downloads
