HeiMotion® Premium Brushless Servo Motors

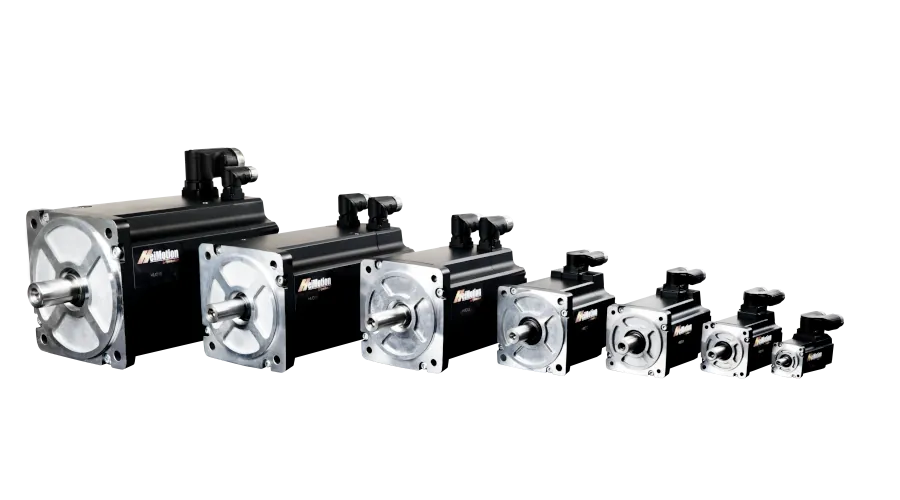

Allied Motion offers our HeiMotion Premium AC brushless servo motors in five metric frame sizes with rated torque from 0.12 up to 14.4 Nm, and continuous shaft power from 50 up to 3750 W. The HMP series is completely configurable with selections for voltage, position feedback, connectors, and more. In addition, our HC series of servo controllers are available to power the HMP series motors.

Key performance data for the HMP series are summarized in the table below.

Series Frame Size
(mm)
Motor Voltage
(Vdc)
Continuous Stall Torque
(Nm)
No-load Speed
(rpm)
Rated Power
(W)
Product Information
Series
HMP04-002
Frame Size
(mm)
40
Motor Voltage
(Vdc)
48
Continuous Stall Torque
(Nm)
0.16
No-load Speed
(rpm)
3000
Rated Power
(W)
50
Product Information
Series
HMP04-002
Frame Size
(mm)
40
Motor Voltage
(Vdc)
48
Continuous Stall Torque
(Nm)
0.14
No-load Speed
(rpm)
6000
Rated Power
(W)
85
Product Information
Series
HMP04-002
Frame Size
(mm)
40
Motor Voltage
(Vdc)
320
Continuous Stall Torque
(Nm)
0.12
No-load Speed
(rpm)
3000
Rated Power
(W)
110
Product Information
Series
HMP04-004
Frame Size
(mm)
40
Motor Voltage
(Vdc)
48
Continuous Stall Torque
(Nm)
0.32
No-load Speed
(rpm)
3000
Rated Power
(W)
100
Product Information
Series
HMP04-004
Frame Size
(mm)
40
Motor Voltage
(Vdc)
48
Continuous Stall Torque
(Nm)
0.28
No-load Speed
(rpm)
6000
Rated Power
(W)
175
Product Information
Series
HMP04-004
Frame Size
(mm)
40
Motor Voltage
(Vdc)
320
Continuous Stall Torque
(Nm)
0.21
No-load Speed
(rpm)
3000
Rated Power
(W)
200
Product Information
Series
HMP06-007
Frame Size
(mm)
60
Motor Voltage
(Vdc)
320
Continuous Stall Torque
(Nm)
0.6
No-load Speed
(rpm)
3000
Rated Power
(W)
200
Product Information
Series
HMP06-007
Frame Size
(mm)
60
Motor Voltage
(Vdc)
320
Continuous Stall Torque
(Nm)
0.5
No-load Speed
(rpm)
6000
Rated Power
(W)
325
Product Information
Series
HMP06-015
Frame Size
(mm)
60
Motor Voltage
(Vdc)
320
Continuous Stall Torque
(Nm)
1.2
No-load Speed
(rpm)
3000
Rated Power
(W)
400
Product Information
Series
HMP06-015
Frame Size
(mm)
80
Motor Voltage
(Vdc)
320
Continuous Stall Torque
(Nm)
0.9
No-load Speed
(rpm)
6000
Rated Power
(W)
550
Product Information
Series
HMP08-028
Frame Size
(mm)
80
Motor Voltage
(Vdc)
320
Continuous Stall Torque
(Nm)
2.4
No-load Speed
(rpm)
3000
Rated Power
(W)
750
Product Information
Series
HMP08-028
Frame Size
(mm)
80
Motor Voltage
(Vdc)
320
Continuous Stall Torque
(Nm)
1.7
No-load Speed
(rpm)
5500
Rated Power
(W)
1000
Product Information
Series
HMP08-028
Frame Size
(mm)
80
Motor Voltage
(Vdc)
560
Continuous Stall Torque
(Nm)
2.3
No-load Speed
(rpm)
3000
Rated Power
(W)
1000
Product Information
Series
HMP08-028
Frame Size
(mm)
80
Motor Voltage
(Vdc)
560
Continuous Stall Torque
(Nm)
1.7
No-load Speed
(rpm)
5500
Rated Power
(W)
1200
Product Information
Series
HMP08-035
Frame Size
(mm)
80
Motor Voltage
(Vdc)
320
Continuous Stall Torque
(Nm)
3.2
No-load Speed
(rpm)
3000
Rated Power
(W)
1000
Product Information
Series
HMP08-035
Frame Size
(mm)
80
Motor Voltage
(Vdc)
320
Continuous Stall Torque
(Nm)
2.1
No-load Speed
(rpm)
5500
Rated Power
(W)
1200
Product Information
Series
HMP08-035
Frame Size
(mm)
80
Motor Voltage
(Vdc)
320
Continuous Stall Torque
(Nm)
3.2
No-load Speed
(rpm)
3000
Rated Power
(W)
1000
Product Information
Series
HMP08-035
Frame Size
(mm)
80
Motor Voltage
(Vdc)
560
Continuous Stall Torque
(Nm)
2.1
No-load Speed
(rpm)
5500
Rated Power
(W)
1200
Product Information
Series
HMP10-056
Frame Size
(mm)
100
Motor Voltage
(Vdc)
560
Continuous Stall Torque
(Nm)
4.8
No-load Speed
(rpm)
3000
Rated Power
(W)
1500
Product Information
Series
HMP10-056
Frame Size
(mm)
100
Motor Voltage
(Vdc)
560
Continuous Stall Torque
(Nm)
3.4
No-load Speed
(rpm)
5000
Rated Power
(W)
1800
Product Information
Series
HMP10-075
Frame Size
(mm)
100
Motor Voltage
(Vdc)
560
Continuous Stall Torque
(Nm)
6.4
No-load Speed
(rpm)
3000
Rated Power
(W)
3000
Product Information
Series
HMP10-075
Frame Size
(mm)
100
Motor Voltage
(Vdc)
560
Continuous Stall Torque
(Nm)
4.8
No-load Speed
(rpm)
5000
Rated Power
(W)
2500
Product Information
Series
HMP13-055
Frame Size
(mm)
130
Motor Voltage
(Vdc)
560
Continuous Stall Torque
(Nm)
4.8
No-load Speed
(rpm)
2000
Rated Power
(W)
1000
Product Information
Series
HMP13-055
Frame Size
(mm)
130
Motor Voltage
(Vdc)
560
Continuous Stall Torque
(Nm)
4.0
No-load Speed
(rpm)
3600
Rated Power
(W)
1500
Product Information
Series
HMP13-055
Frame Size
(mm)
130
Motor Voltage
(Vdc)
560
Continuous Stall Torque
(Nm)
4.8
No-load Speed
(rpm)
2000
Rated Power
(W)
1000
Product Information
Series
HMP13-055
Frame Size
(mm)
130
Motor Voltage
(Vdc)
560
Continuous Stall Torque
(Nm)
4.0
No-load Speed
(rpm)
3600
Rated Power
(W)
1500
Product Information
Series
HMP13-091
Frame Size
(mm)
130
Motor Voltage
(Vdc)
560
Continuous Stall Torque
(Nm)
7.2
No-load Speed
(rpm)
2000
Rated Power
(W)
1500
Product Information
Series
HMP13-091
Frame Size
(mm)
130
Motor Voltage
(Vdc)
560
Continuous Stall Torque
(Nm)
6.0
No-load Speed
(rpm)
3600
Rated Power
(W)
2250
Product Information
Series
HMP13-123
Frame Size
(mm)
130
Motor Voltage
(Vdc)
560
Continuous Stall Torque
(Nm)
9.6
No-load Speed
(rpm)
2000
Rated Power
(W)
2000
Product Information
Series
HMP13-123
Frame Size
(mm)
130
Motor Voltage
(Vdc)
560
Continuous Stall Torque
(Nm)
8.0
No-load Speed
(rpm)
3600
Rated Power
(W)
3000
Product Information
Series
HMP13-185
Frame Size
(mm)
130
Motor Voltage
(Vdc)
560
Continuous Stall Torque
(Nm)
14.4
No-load Speed
(rpm)
2000
Rated Power
(W)
3000
Product Information
Series
HMP13-185
Frame Size
(mm)
130
Motor Voltage
(Vdc)
560
Continuous Stall Torque
(Nm)
10.0
No-load Speed
(rpm)
3600
Rated Power
(W)
3750
Product Information
