Megaflux™ Frameless Direct Drive Torque Motors

  • > Brushless Motors
  • > Brushless Direct Drive Torque Motors
  • Megaflux™ Frameless Direct Drive Torque Motors

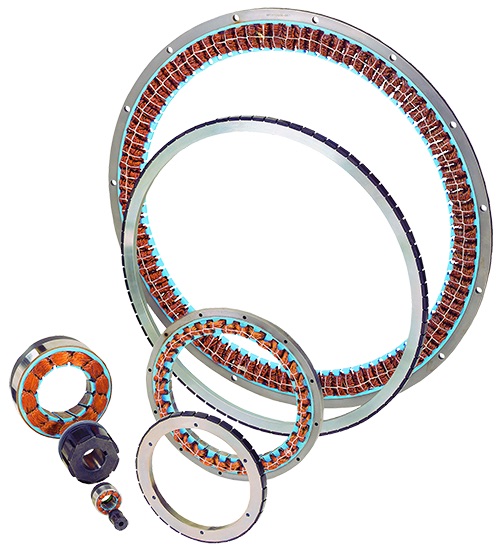

Allied Motion's Megaflux family of high performance frameless direct drive brushless torque motors includes 12 frame diameters ranging from 60 through 792 mm (2.4 though 31.2 inches) with multiple stack lengths for each diameter, insuring that one of our standard models will likely meet your exact requirements.

Continuous stall torque ranges up to 2020 Nm (1490 lb-ft). Megaflux frameless torque motors offer a clear ID aperture of up to 582 mm (22.9 in).

The performance ranges of the standard motor series are summarized in the table below.

Modified standards and completely custom versions of Megaflux direct drive torque motors are often provided by Allied Motion to meet specific application demands. Contact us to discuss your requirements.

Series Frame Diameter (OD)
(mm)
Frame Diameter (ID)
(mm)
Stack Length
(mm)
Motor Voltage
(Vdc)
Continuous Stall Torque
(Nm)
No-load Speed
(rpm)
Product Information
Series
MF0060
Frame Diameter (OD)
(mm)
60
Frame Diameter (ID)
(mm)
36
Stack Length
(mm)
8-55
Motor Voltage
(Vdc)
48, 150, 300
Continuous Stall Torque
(Nm)
0.3 - 1
No-load Speed
(rpm)
2076 - 7098
Product Information
Series
MF0076
Frame Diameter (OD)
(mm)
76
Frame Diameter (ID)
(mm)
47
Stack Length
(mm)
8-55
Motor Voltage
(Vdc)
48, 150, 300
Continuous Stall Torque
(Nm)
0.5 - 2.2
No-load Speed
(rpm)
1640 - 6447
Product Information
Series
MF0095
Frame Diameter (OD)
(mm)
95
Frame Diameter (ID)
(mm)
58
Stack Length
(mm)
8-55
Motor Voltage
(Vdc)
48, 150, 300
Continuous Stall Torque
(Nm)
0.9 - 4.4
No-load Speed
(rpm)
1300 - 5436
Product Information
Series
MF0127
Frame Diameter (OD)
(mm)
127
Frame Diameter (ID)
(mm)
84
Stack Length
(mm)
8-55
Motor Voltage
(Vdc)
48, 150, 300
Continuous Stall Torque
(Nm)
1.6 - 8.4
No-load Speed
(rpm)
939 - 5097
Product Information
Series
MF0150
Frame Diameter (OD)
(mm)
170
Frame Diameter (ID)
(mm)
74
Stack Length
(mm)
10-101
Motor Voltage
(Vdc)
48, 150, 300
Continuous Stall Torque
(Nm)
3.1 - 25
No-load Speed
(rpm)
416 - 2500
Product Information
Series
MF0210
Frame Diameter (OD)
(mm)
230
Frame Diameter (ID)
(mm)
130
Stack Length
(mm)
10-101
Motor Voltage
(Vdc)
48, 150, 300
Continuous Stall Torque
(Nm)
8 - 75
No-load Speed
(rpm)
338 - 1894
Product Information
Series
MF0255
Frame Diameter (OD)
(mm)
275
Frame Diameter (ID)
(mm)
172
Stack Length
(mm)
10-101
Motor Voltage
(Vdc)
48, 150, 300
Continuous Stall Torque
(Nm)
10 - 103
No-load Speed
(rpm)
280 - 1591
Product Information
Series
MF0310
Frame Diameter (OD)
(mm)
330
Frame Diameter (ID)
(mm)
210
Stack Length
(mm)
10-101
Motor Voltage
(Vdc)
48, 150, 300
Continuous Stall Torque
(Nm)
17 - 181
No-load Speed
(rpm)
100 - 1260
Product Information
Series
MF0410
Frame Diameter (OD)
(mm)
430
Frame Diameter (ID)
(mm)
268
Stack Length
(mm)
16-101
Motor Voltage
(Vdc)
48, 150, 300
Continuous Stall Torque
(Nm)
69 - 380
No-load Speed
(rpm)
71 - 926
Product Information
Series
MF0510
Frame Diameter (OD)
(mm)
535
Frame Diameter (ID)
(mm)
398
Stack Length
(mm)
16-101
Motor Voltage
(Vdc)
48, 150, 300
Continuous Stall Torque
(Nm)
110 - 684
No-load Speed
(rpm)
42 - 771
Product Information
Series
MF0610
Frame Diameter (OD)
(mm)
640
Frame Diameter (ID)
(mm)
462
Stack Length
(mm)
16-101
Motor Voltage
(Vdc)
48, 150, 300
Continuous Stall Torque
(Nm)
172 - 1034
No-load Speed
(rpm)
25 - 595
Product Information
Series
MF0760
Frame Diameter (OD)
(mm)
792
Frame Diameter (ID)
(mm)
582
Stack Length
(mm)
16-101
Motor Voltage
(Vdc)
48, 150, 300
Continuous Stall Torque
(Nm)
304 - 1875
No-load Speed
(rpm)
17 - 422
Product Information
