Globe Brushless DC Motors

Globe Brushless DC Motors

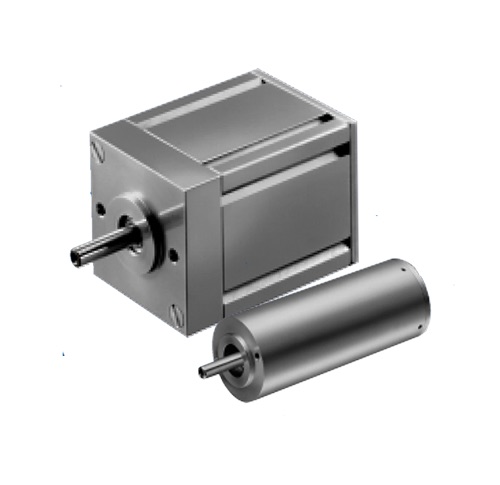

Allied Motion's Globe INB/NB line are small frame, rare-earth brushless DC motors. The INB series are intended for industrial applications while the NB series is designed for mil-aero applications.

All models incorporate Hall commutation sensors as standard. Both series can be equipped with gearheads to boost output torque. See the gear motors section of this website for more information.

The table below summarizes the performance of the INB and NB series brushless DC motors.

Series Mil-Spec Frame Size (mm) Length (mm) Voltage (VDC) Rated Output Torque (mNm) Rated Output Speed (RPM) Rated Current (A) Rated Output Power (W) Product Information
Series
INB-08
Mil-Spec
N/A
Frame Size (mm)
20
Length (mm)
55
Voltage (VDC)
24
Rated Output Torque (mNm)
7
Rated Output Speed (RPM)
24000
Rated Current (A)
1.1
Rated Output Power (W)
18
Product Information
Series
INB-15
Mil-Spec
N/A
Frame Size (mm)
38
Length (mm)
55
Voltage (VDC)
27
Rated Output Torque (mNm)
71
Rated Output Speed (RPM)
7500, 10500
Rated Current (A)
2.9, 3.9
Rated Output Power (W)
70.1
Product Information
Series
NB-15
Mil-Spec
Yes
Frame Size (mm)
38
Length (mm)
55
Voltage (VDC)
27
Rated Output Torque (mNm)
60
Rated Output Speed (RPM)
9000 - 12500
Rated Current (A)
3.4, 4.4
Rated Output Power (W)
70.1
Product Information
