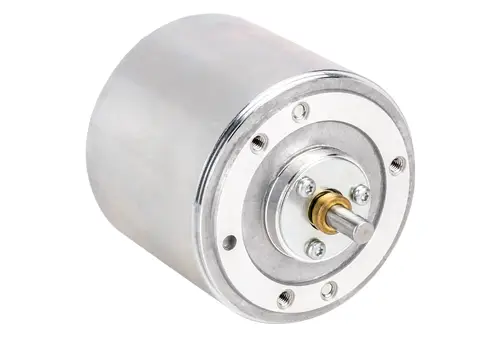

CL Series Coreless Brushed DC Motors

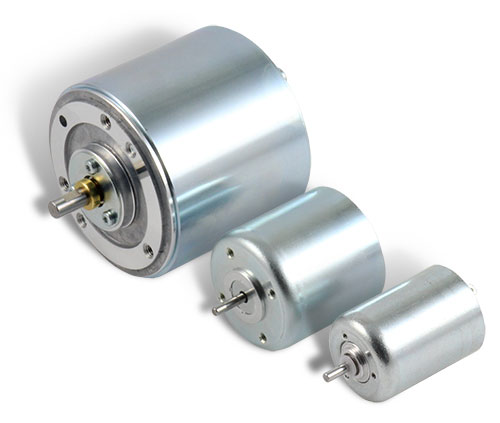

Allied Motion's CL family of coreless brushed DC motors maximizes performance via a unique coreless rotor design and high strength permanent magnets. CL motors boast virtually zero iron loss, no cogging torque, minimal torque ripple, and low rotor inertia.
Performance for the three frame-size series in the CL family is summarized in the table below.
Resources
Allied Corporate Overview
| Series | Frame Size (mm) | Length (mm) | Voltage (VCD) | Rated Load Torque (mNm) | Rated Output Speed (RPM) | Rated Current (mA) | Rated Output Power (W) | Product Information |
|---|---|---|---|---|---|---|---|---|
|
Series
CL29
|
Frame Size (mm)
29
|
Length (mm)
40
|
Voltage (VCD)
6-24
|
Rated Load Torque (mNm)
10
|
Rated Output Speed (RPM)
2380 - 2680
|
Rated Current (mA)
185 - 775
|
Rated Output Power (W)
3
|
Product Information
|
|
Series
CL40 (7 W)
|
Frame Size (mm)
40
|
Length (mm)
40
|
Voltage (VCD)
6-30
|
Rated Load Torque (mNm)
22
|
Rated Output Speed (RPM)
2650 - 4170
|
Rated Current (mA)
320 - 1520
|
Rated Output Power (W)
7
|
Product Information
|
|
Series
CL40 (12 W)
|
Frame Size (mm)
40
|
Length (mm)
42
|
Voltage (VCD)
6-30
|
Rated Load Torque (mNm)
26
|
Rated Output Speed (RPM)
4090 - 4170
|
Rated Current (mA)
490 - 1250
|
Rated Output Power (W)
12
|
Product Information
|
|
Series
CL66
|
Frame Size (mm)
66
|
Length (mm)
64
|
Voltage (VCD)
12-36
|
Rated Load Torque (mNm)
100
|
Rated Output Speed (RPM)
1800 - 2540
|
Rated Current (mA)
980 - 2330
|
Rated Output Power (W)
25
|
Product Information
|
