Brushless Servo Motors

Brushless Servo Motor

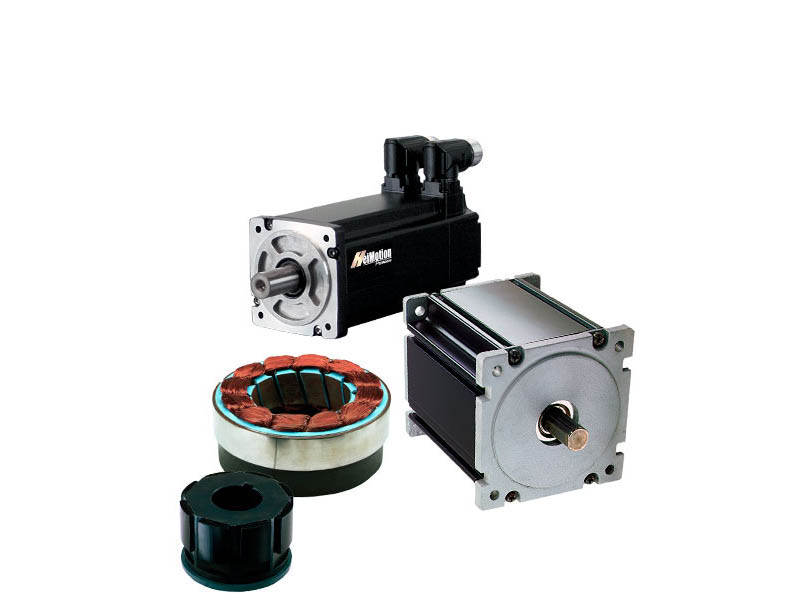

Brushless DC Servo Motors & AC Servo Motors

Allied Motion offers high performance three-phase Brushless AC Servo Motors in standard metric and NEMA frame sizes. Click on the HeiMotion® Premium Brushless Servo Motors below to access complete specifications.

Key features of each family of Brushless DC servo motors are summarized in the table below. Click the "Details" button to find technical files including model specs, datasheets, CAD drawings and installation manuals for each of our brushless DC servo motors.

FamilyFrame Size mmRated Torque NmRated Output Power WProduct Information
HeiMotion® Premium Brushless Servo Motors40 - 1300.12 - 14.450 - 3750 Details
Quantum™ Frameless Brushless Servo Motors36 - 127 ∅0.07 - 15 (stall)Cooling dependent Details
Quantum™ NEMA Brushless Servo Motors43 - 142 (NEMA 17, 23, 34, 56) ☐0.05 - 11.1 (rated)68 - 2551 Details

NEED A CUSTOM SOLUTION?

Allied Motion's engineers will work with you to develop a custom solution to meet your specific requirements.  We're here to help you every step of the way.
