New KinetiMax 42 EB Brushless DC Motor with Integrated Drive

Allied Motion Introduces KinetiMax 42 EB Brushless DC Motor with Integrated Drive

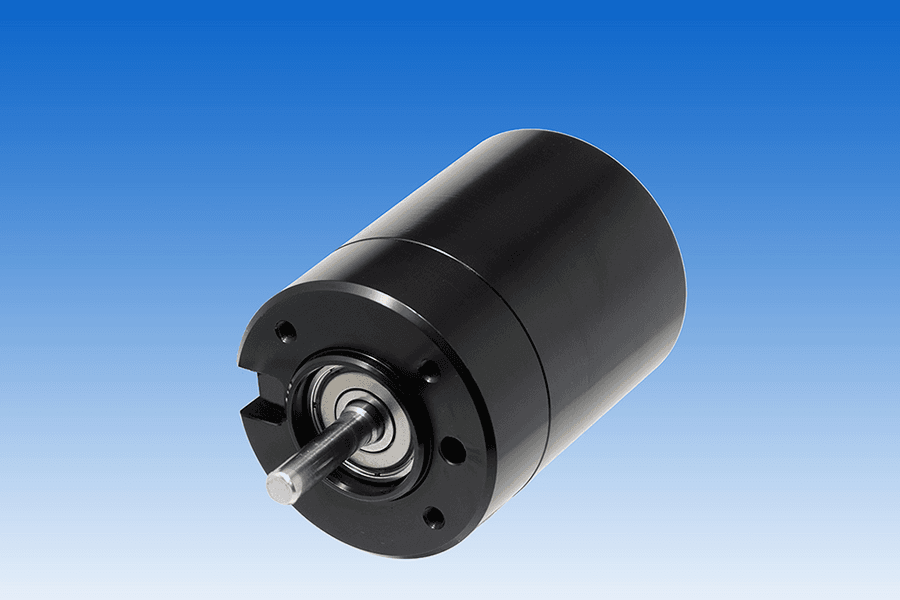

New KinetiMax 42 EB Brushless DC Motor with Integrated DriveAmherst, NY – Allied Motion Technologies introduces the KinetiMax 42 EB, a 42-mm diameter outer rotor, brushless DC motor with an integrated drive. Extremely compact, the KinetiMax 42 has a robust bearing system capable of handling high side loads. It has a minimum operating life of 20,000 hours. The KinetiMax has an integrated speed control loop with speed set input to adjust motor speed from 150 to 5000 RPM.

The external rotor and iron-core stator minimize cogging and maximize output torque. The higher inertia of the outer rotor design enables a smoother running motor even at low speed. The KinetiMax 42 is equipped as standard with thermal overload protection with automatic recovery, and reverse supply voltage protection.

KinetiMax 42 offers a cost-effective solution for applications including smaller capacity pumps, fans and blowers, scanners, and similar applications that require smooth fixed or variable speed control.

KinetiMax 42highlights include:

  • 70 mNm rated torque and 31 W output at 4300 RPM
  • 6-wire version with tachometer output (18 pulses per rev) for speed monitoring, speed input and direction input
  • Choice of 12 or 24 VDC winding
  • IP54-rated protection
  • Low EMI (complies with EN55014-1/2, 61000-6-1/3)
  • Options include customized shaft, mounting flange, leads and connector configurations, and special winding voltage rating

About Allied Motion Technologies Inc.

Allied Motion Technologies (NASDAQ: AMOT), designs, manufactures and sells precision and specialty motion control components and systems used in a broad range of industries within our major served markets, which include Vehicle, Medical, Aerospace & Defense, Electronics and Industrial. The Company is headquartered in Amherst, NY, has global operations and sells into markets across the United States, Canada, South America, Europe and Asia.

Allied Motion is focused on motion control applications and is known worldwide for its expertise in electro-magnetic, mechanical and electronic motion technology. Its products include brush and brushless DC motors, brushless servo and torque motors, coreless DC motors, integrated brushless motor-drives, gear motors, gearing, modular digital servo drives, motion controllers, incremental and absolute optical encoders, and other associated motion control-related products. The Company’s growth strategy is focused on becoming the motion solution leader in its selected target markets by leveraging its “technology/know how” to develop integrated precision motion solutions that utilize multiple Allied Motion technologies to “change the game” and create higher value solutions for its customers.

For more information, visit, email:, or call 716.242.7535.
