Allied Motion offers electronic drive products to power our motors. The cost-effective single-axis SXD and xDrive families are, respectively, DC-fed and AC-fed full-featured servo drives. Both are compact, modular units able to precisely control motor torque or velocity.

Performance capabilities for our motor drives are summarized below.

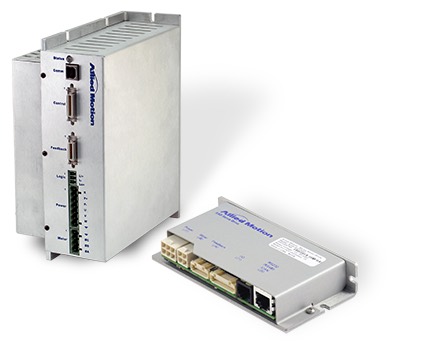

Allied Motion single-axis servo motor drives - SXD15 & xDrive

Family Type Power Supply Nominal Output
(Vdc)
Rated Output Current
(Arms)
Rated Output Power
(W)
Family
SXD
Type
DC-input brushless servo drive
Power Supply
12 - 80 Vdc
Nominal Output
(Vdc)
12 - 80
Rated Output Current
(Arms)
10.6
Rated Output Power
(W)
1000
Family
xDrive
Type
AC-input brushless servo drive
Power Supply
115 - 230 Vac
Nominal Output
(Vdc)
160 - 320
Rated Output Current
(Arms)
2.8, 5.7, 11.3
Rated Output Power
(W)
1200, 2400, 4800
