Brush DC Planetary Gear Motors

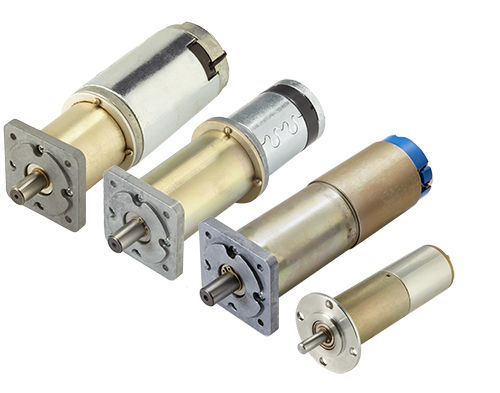

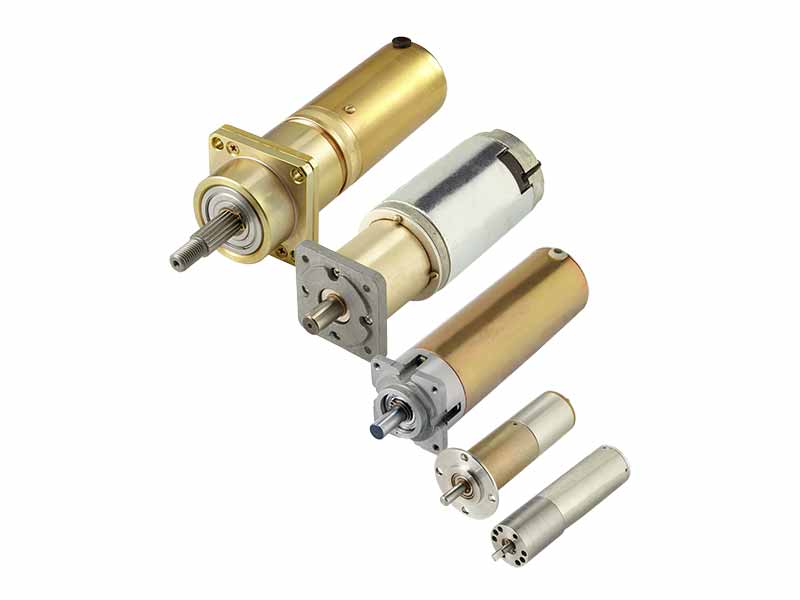

Allied Motion offers the Globe line of small-frame fractional horsepower planetary gear motors.
Series are available equipped with PMDC brush motors or brushless DC motors. Brush DC planetary gear motors are featured here. (brushless planetary gear motors information is available here.) Models with output torque rated to as high as 8.8 Nm (1250 oz-in) are available.
Performance summaries for the brush DC planetary gear motors are summarized in the table below. Click the table links for complete specification information.
Resources
Allied Corporate Overview
| Series | Frame Size (mm) | Length (mm) | Voltage (VDC) | Rated Load Torque (Nm) | Rated Output Speed (RPM) | Gear Ratio (n:1) | Rated Current (A) | Rated Output Power (W) | Product Information |
|---|---|---|---|---|---|---|---|---|---|
|
Series
CLL
|
Frame Size (mm)
32
|
Length (mm)
81-112
|
Voltage (VDC)
6-75
|
Rated Load Torque (Nm)
0.1 - 8.8
|
Rated Output Speed (RPM)
0.1 - 4000
|
Gear Ratio (n:1)
4 - 46656
|
Rated Current (A)
0.10 - 2.0
|
Rated Output Power (W)
1-16
|
Product Information
|
|
Series
CMM
|
Frame Size (mm)
32
|
Length (mm)
73-102
|
Voltage (VDC)
6-50
|
Rated Load Torque (Nm)
0.1 - 8.8
|
Rated Output Speed (RPM)
0.1 - 4000
|
Gear Ratio (n:1)
4 - 46656
|
Rated Current (A)
0.12 - 2.0
|
Rated Output Power (W)
1-10
|
Product Information
|
|
Series
IM-13
|
Frame Size (mm)
30
|
Length (mm)
80-117
|
Voltage (VDC)
12, 24
|
Rated Load Torque (Nm)
0.1 - 8.8
|
Rated Output Speed (RPM)
0.1-1300
|
Gear Ratio (n:1)
4 - 46656
|
Rated Current (A)
0.4 - 1.3
|
Rated Output Power (W)
3-8
|
Product Information
|
|
Series
IM-15
|
Frame Size (mm)
40
|
Length (mm)
94-131
|
Voltage (VDC)
12, 24
|
Rated Load Torque (Nm)
0.1 - 8.8
|
Rated Output Speed (RPM)
0.1-1300
|
Gear Ratio (n:1)
4 - 46656
|
Rated Current (A)
1.0 - 2.3
|
Rated Output Power (W)
7-16
|
Product Information
|
|
Series
SS
|
Frame Size (mm)
22
|
Length (mm)
81-103
|
Voltage (VDC)
24
|
Rated Load Torque (Nm)
0.1-2.1
|
Rated Output Speed (RPM)
0.7 - 6570
|
Gear Ratio (n:1)
4 - 36873
|
Rated Current (A)
1.2
|
Rated Output Power (W)
4-11
|
Product Information
|
