Parallel Shaft DC Gear Motors

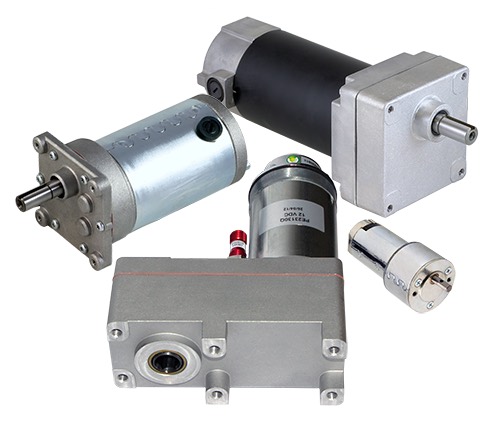

Allied Motion offers fractional horsepower parallel-shaft gear motors equipped with PMDC motors or, optionally, brushless DC motors.
The available series are summarized in the table below. You many also contact us for a custom-design to suit your specific application requirements.
Resources
Allied Corporate Overview
QuickShip Products
Some of the models for this product series are stocked and available for immediate shipment!
Look for the QuickShip symbol in the datasheet next to available QuickShip part numbers. Click the part number link to go directly to our online store.
| Series | Frame (mm) | Length (mm) | Voltage (VDC) | Rated Load Torque (Nm) | Rated Output Speed (RPM) | Gear Ratio (n:1) | Rated Current (A) | Rated Output Power (W) | Product Information |
|---|---|---|---|---|---|---|---|---|---|
|
Series
PLA
|
Frame (mm)
64
|
Length (mm)
160
|
Voltage (VDC)
12
|
Rated Load Torque (Nm)
11
|
Rated Output Speed (RPM)
23
|
Gear Ratio (n:1)
208
|
Rated Current (A)
6
|
Rated Output Power (W)
27
|
Product Information
|
|
Series
PLB
|
Frame (mm)
73
|
Length (mm)
115
|
Voltage (VDC)
24
|
Rated Load Torque (Nm)
3.1, 5.9
|
Rated Output Speed (RPM)
255, 130
|
Gear Ratio (n:1)
17, 29
|
Rated Current (A)
6
|
Rated Output Power (W)
82
|
Product Information
|
|
Series
PLC
|
Frame (mm)
82, 92
|
Length (mm)
268, 277
|
Voltage (VDC)
12, 24
|
Rated Load Torque (Nm)
6, 14
|
Rated Output Speed (RPM)
221, 202
|
Gear Ratio (n:1)
20
|
Rated Current (A)
2, 18
|
Rated Output Power (W)
144, 297
|
Product Information
|
|
Series
IM-13
|
Frame (mm)
30
|
Length (mm)
71-82
|
Voltage (VDC)
12, 24
|
Rated Load Torque (Nm)
0.1-1.1
|
Rated Output Speed (RPM)
3-825
|
Gear Ratio (n:1)
6-1803
|
Rated Current (A)
0.4, 0.8
|
Rated Output Power (W)
3-4
|
Product Information
|
|
Series
IM-15
|
Frame (mm)
40
|
Length (mm)
93-140
|
Voltage (VDC)
12, 24
|
Rated Load Torque (Nm)
0.1-1.1
|
Rated Output Speed (RPM)
1-881
|
Gear Ratio (n:1)
6-4732
|
Rated Current (A)
1-2
|
Rated Output Power (W)
8-16
|
Product Information
|
