HT Frameless Direct Drive Torque Motors

  • > Brushless Motors
  • > Brushless Direct Drive Torque Motors
  • HT Frameless Direct Drive Torque Motors

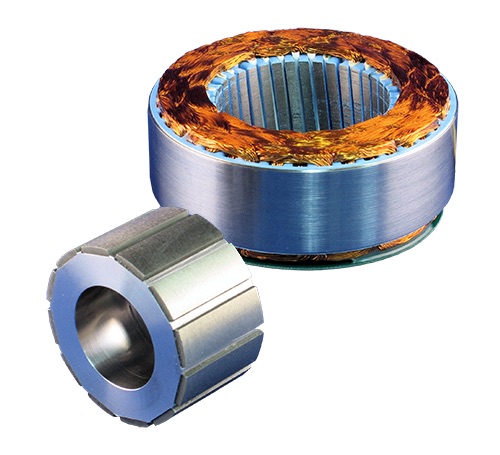

Allied Motion's HT family are high torque density frameless direct drive brushless motors offering nine frame diameters and stall torque ranging from 0.008 up to 9.2 Nm (1.0 up to 1277 oz-in). HT torque motors offer a clear aperture hollow-shaft of up to 63.5 mm (2.5 in). All frameless HT models are equipped standard with a Hall commutation switch assembly.

Frameless HT torque motors are designed for direct axis integration in machine applications where component rotor-stator solutions are the better choice over housed motors.

Performance of the standard HT frameless direct drive torque motors is summarized in the table below.

Modified standards and completely custom designs are often provided by Allied Motion to our customers. Contact us to discuss your specific application requirements.

Series Frame Size (OD)
(mm)		 Frame Size (ID max.)
(mm)		 Rotor Length
(mm)		 Voltage
(Vdc)		 Continuous Stall Torque
(Nm)		 No-load Speed
(rpm)		 Product Information
Series
HT008
Frame Size (OD)
(mm)
19
Frame Size (ID max.)
(mm)
5
Rotor Length
(mm)
11, 21, 31
Voltage
(Vdc)
24
Continuous Stall Torque
(Nm)
0.008, 0.015, 0.021
No-load Speed
(rpm)
10891 - 18298
Product Information
Datasheet
Additional Files
Series
HT010
Frame Size (OD)
(mm)
27
Frame Size (ID max.)
(mm)
6
Rotor Length
(mm)
11-41
Voltage
(Vdc)
24
Continuous Stall Torque
(Nm)
0.1
No-load Speed
(rpm)
4796 - 8510
Product Information
Datasheet
Additional Files
Series
HT015
Frame Size (OD)
(mm)
38
Frame Size (ID max.)
(mm)
9
Rotor Length
(mm)
11-62
Voltage
(Vdc)
24
Continuous Stall Torque
(Nm)
0.1 - 0.3
No-load Speed
(rpm)
2845 - 6897
Product Information
Datasheet
Additional Files
Series
HT020
Frame Size (OD)
(mm)
49
Frame Size (ID max.)
(mm)
20
Rotor Length
(mm)
11-62
Voltage
(Vdc)
24
Continuous Stall Torque
(Nm)
0.1 - 0.7
No-load Speed
(rpm)
1429 - 3948
Product Information
Datasheet
Additional Files
Series
HT023
Frame Size (OD)
(mm)
60
Frame Size (ID max.)
(mm)
29
Rotor Length
(mm)
11-62
Voltage
(Vdc)
24
Continuous Stall Torque
(Nm)
0.2 - 1.2
No-load Speed
(rpm)
600 - 1904
Product Information
Datasheet
Additional Files
Series
HT025
Frame Size (OD)
(mm)
63
Frame Size (ID max.)
(mm)
25
Rotor Length
(mm)
11-62
Voltage
(Vdc)
24
Continuous Stall Torque
(Nm)
0.2 - 1.2
No-load Speed
(rpm)
847 - 1954
Product Information
Datasheet
Additional Files
Series
HT030
Frame Size (OD)
(mm)
76
Frame Size (ID max.)
(mm)
35
Rotor Length
(mm)
11-62
Voltage
(Vdc)
24
Continuous Stall Torque
(Nm)
0.4 - 2.2
No-load Speed
(rpm)
530 - 1857
Product Information
Datasheet
Additional Files
Series
HT038
Frame Size (OD)
(mm)
95
Frame Size (ID max.)
(mm)
43
Rotor Length
(mm)
11-62
Voltage
(Vdc)
100
Continuous Stall Torque
(Nm)
0.8 - 4.6
No-load Speed
(rpm)
545 - 1568
Product Information
Datasheet
Additional Files
Series
HT050
Frame Size (OD)
(mm)
127
Frame Size (ID max.)
(mm)
64
Rotor Length
(mm)
11-62
Voltage
(Vdc)
100
Continuous Stall Torque
(Nm)
1.6 - 9
No-load Speed
(rpm)
419 - 1424
Product Information
Datasheet
Additional Files
