Globe Mil-Aero Vaneaxial Blowers

  • > Blowers & Fans
  • > Globe Mil-Aero Blowers
  • Globe Mil-Aero Vaneaxial Blowers

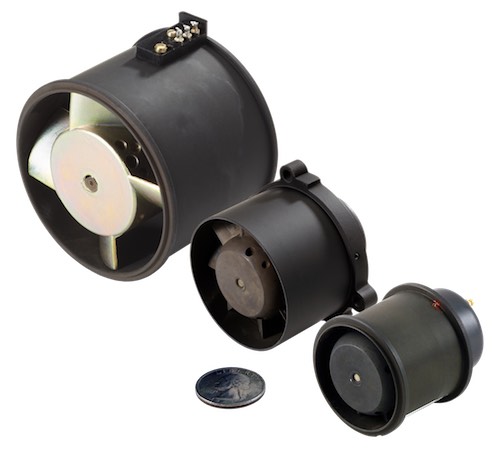

Allied Motion offers the Globe line of small-frame, compact vaneaxial blowers designed for mil-aero (mil-spec) applications. Both AC and DC powered units are offered

Free air flow for these blowers ranges from 10 up to 167 CFM.

The table below summarizes the performance for the Globe vaneaxial family of blowers.

Series Frame Size (mm) Length (mm) Free Air Flow (CFM) Free Air Current (A) Voltage Frequency (Hz) Speed (RPM) Input Power (W) Product Information
Series
VAX-1.5AC
Frame Size (mm)
44
Length (mm)
38
Free Air Flow (CFM)
10, 17.5, 18
Free Air Current (A)
0.1, 0.2, 0.1
Voltage
115, 200 VAC
Frequency (Hz)
400
Speed (RPM)
12000, 21500, 22500
Input Power (W)
7, 25, 24
Product Information
Series
VAX-1.5DC
Frame Size (mm)
44
Length (mm)
51
Free Air Flow (CFM)
16, 19
Free Air Current (A)
0.6, 0.3
Voltage
27, 50 VDC
Frequency (Hz)
-
Speed (RPM)
18500, 20000
Input Power (W)
17.5
Product Information
Series
VAX-2AC
Frame Size (mm)
51
Length (mm)
38
Free Air Flow (CFM)
33, 35, 65
Free Air Current (A)
-
Voltage
115, 200 VAC
Frequency (Hz)
400
Speed (RPM)
10000 - 19500
Input Power (W)
15-55
Product Information
Series
VAX-2DC
Frame Size (mm)
51
Length (mm)
51
Free Air Flow (CFM)
35, 53
Free Air Current (A)
0.4, 1.1
Voltage
26 VDC
Frequency (Hz)
-
Speed (RPM)
11000, 16500
Input Power (W)
11.2, 29
Product Information
Series
VAX-3AC
Frame Size (mm)
76
Length (mm)
60
Free Air Flow (CFM)
90 – 167
Free Air Current (A)
-
Voltage
115, 200, 208 VAC
Frequency (Hz)
400
Speed (RPM)
11000 - 20500
Input Power (W)
24-160
Product Information
Series
VAX-3DC
Frame Size (mm)
76
Length (mm)
98
Free Air Flow (CFM)
95, 110
Free Air Current (A)
2.7, 1.5
Voltage
12, 28 VDC
Frequency (Hz)
-
Speed (RPM)
11700, 13000
Input Power (W)
-
Product Information
